3M 7100165632 3M™ Cold Shrink QS-III Splice Kits 5467A-12SB-AL-WF
- MPN: 7100165632
- UPC: 051128617748
- PPN: MMM-5467A-12SB-AL-WF
CAD
$3077.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

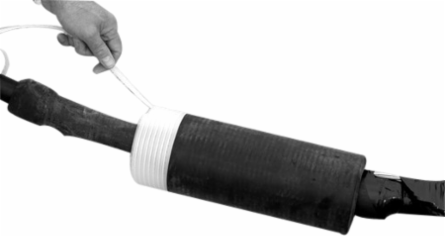

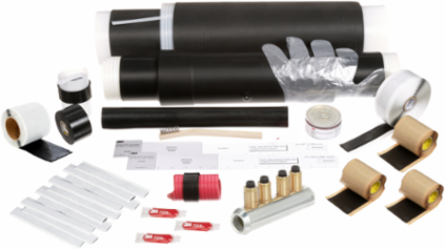

3M™ 5467A Series Cold Shrink QS III Splice Kit is an inline splice designed to join 35kV jacketed concentric neutral (JCN) and concentric neutral (CN) power cables. The cold shrink design fits type MV 90 or type MV 105 cables with copper or aluminum conductors while ensuring a quick installation and excellent cable size transitions.
Features
- Inline splice for joining jacketed concentric neutral (JCN) and concentric neutral (CN) power cables
- Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
- Designed for feeder and distribution circuits, size transition splicing, direct burial installations, submerged locations and use with standard inline crimp connectors
- Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection
- Rated for 35 kV cables
- High-voltage, production-tested for partial discharge and AC ensure reliability
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 35 kV |
| For Use With | Aluminum and/or Copper Conductors |
| Shelf Life | 1095 |
| Cable Shielding | Concentric Neutral (CN) |
|---|---|
| Application | Cable Connection |
| Material | Silicone Rubber |
