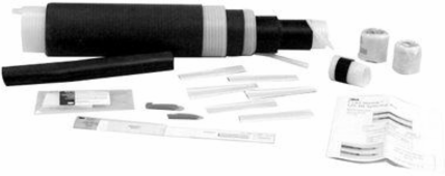

3M 5417A 3M Cold Shrink QS-III Splice Kit 5417A, CN and JCN Cable, 15 kV, 350-750 kcmil (185-325 mm²), 1 per case

3M Cold Shrink QS-III Splice Kit 5417A, CN and JCN Cable, 15 kV, 350-750 kcmil (185-325 mm²), 1 per case

3M 5417A 3M Cold Shrink QS-III Splice Kit 5417A, CN and JCN Cable, 15 kV, 350-750 kcmil (185-325 mm²), 1 per case

MPN: 5417A
UPC: 054007421245
PPN: MMM-5417A

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1619.10/ EA

Loading add to cart quantity...

Description

3M Cold Shrink QS-III Splice Kit 5417A, CN and JCN Cable, 15 kV, 350-750 kcmil (185-325 mm²), 1 per case

Specifications

Specifications

3M ID: 80611207020

Case Quantity: 1

Conductor Sizes: 350 kcmil, 500 kcmil, 750 kcmil

Insulation O.D. Range: 1.04 - 1.70 Inch

Insulation Outside Diameter Range: 1.04 - 1.70 Inch

Product Series: 5415A, 5416A, 5417A, 5418A Series

Product Type: Splice

RoHS EU Comments: Contact 3M for information

Splice Type: Inline

Voltage: 15 kV

Brand3M™

Conductor MaterialAluminum, Copper

Connector IncludedNone

Insulation O.D. Range (Metric)26.4 - 43.2 mm

Number of Conductors1

Product TechnologyCold Shrink

RoHS 2011/65/EU CompliantUndetermined

Shielding TypeConcentric Neutral (CN), Jacketed Concentric Neutral (JCN)

Trademark3M

Voltage ApplicationMedium Voltage
