3M

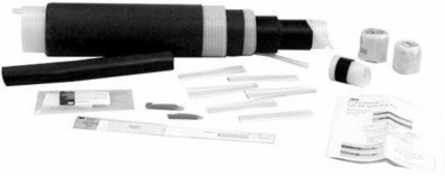

3M 5467A-4/0-AL Cold Shrink QS-III Splice Kit, 35 kV, 4/0 AWG, Insulation O.D. 1.07-1.70 Inch

Cold Shrink QS-III Splice Kit, 35 kV, 4/0 AWG, Insulation O.D. 1.07-1.70 Inch
  • MPN: 5467A-4/0-AL
  • UPC: 00054007430551
  • PPN: MMM-5467A-4/0-AL

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1985.53/ EA

Specifications

Specifications

3M ID
80611231871
Conductor Material
Aluminum, Copper
Connector Included
20008
Insulation Outside Diameter Range
1.07 - 1.70 Inch
Product Series
5467A & 5468A Series
Product Type
Splice
RoHS EU Comments
Contact 3M for information
Trademark
3M
Case Quantity1
Conductor Sizes4/0 AWG
Insulation O.D. Range1.07 - 1.70 Inch
Number of Conductors1
Product TechnologyCold Shrink
RoHS 2011/65/EU CompliantUndetermined
Shielding TypeConcentric Neutral (CN), Jacketed Concentric Neutral (JCN)
Voltage35 kV
