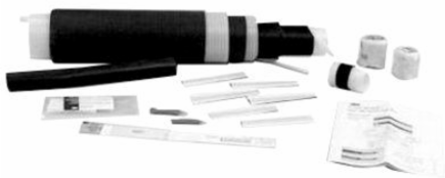

3M 5513A-4/0-CU Cold Shrink Splice Kit, 15 kV, 4/0 AWG, Insulation O.D. 0.64-1.01 Inch
- MPN: 5513A-4/0-CU
- UPC: 051128534922
- PPN: MMM-5513A-4/0-CU
CAD
$1515.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink Splice Kit, 15 kV, 4/0 AWG, Insulation O.D. 0.64-1.01 Inch
Specifications
Key Specifications
| 3M ID | 80611218027 |
|---|---|
| Conductor Material | Copper |
| Connector Included | 10008 |
| Insulation O.D. Range (Metric) | 16.3 - 25.7 mm |
| Number of Conductors | 1 |
| Product Technology | Cold Shrink |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Longitudinally Corrugated (LC), Tape Shield, UniShield®, Wire Shield |
| Trademark | 3M |
| Case Quantity | 1 |
|---|---|
| Conductor Sizes | 4/0 AWG |
| Insulation O.D. Range | 0.64 - 1.01 Inch |
| Insulation Outside Diameter Range | 0.64 - 1.01 Inch |
| Product Series | 5513A, 5514A, 5515A & 5516A Series |
| Product Type | Splice |
| RoHS EU Comments | Contact 3M for information |
| Splice Type | Inline |
| Voltage | 15 kV |
