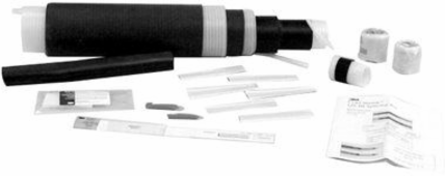

3M 5524A Cold Shrink QS-III Splice Kit, Inline, 25/28 kV, 1 AWG-250 kcmil, Insulation O.D. 0.84-1.36 Inch
- MPN: 5524A
- UPC: 051128539224
- PPN: MMM-5524A
CAD
$1763.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QS-III Splice Kit, Inline, 25/28 kV, 1 AWG-250 kcmil, Insulation O.D. 0.84-1.36 Inch
Specifications
Key Specifications
| 3M ID | 80611232325 |
|---|---|
| Case Quantity | 1 |
| Conductor Sizes | 1 AWG, 1/0 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 4/0 AWG |
| Insulation O.D. Range | 0.84 - 1.36 Inch |
| Insulation Outside Diameter Range | 0.84 - 1.36 Inch |
| Product Series | 5524A, 5525A & 5526A Series |
| Product Type | Splice |
| RoHS EU Comments | Contact 3M for information |
| Splice Type | Inline |
| Voltage | 25/28 kV |
| Brand | 3M™ |
|---|---|
| Conductor Material | Aluminum, Copper |
| Connector Included | None |
| Insulation O.D. Range (Metric) | 21.3 - 34.5 mm |
| Number of Conductors | 1 |
| Product Technology | Cold Shrink |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Longitudinally Corrugated (LC), Tape Shield, UniShield®, Wire Shield |
| Trademark | 3M |
| Voltage Application | Medium Voltage |
