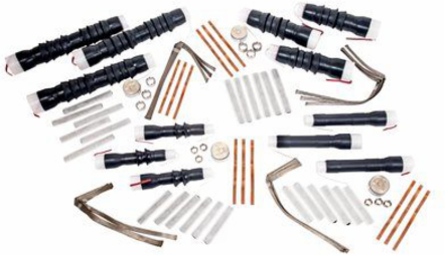

3M 5788A-MT Cold Shrink QS-III Inline Splice Kit, 25/28 kV, 1.24-2.07 Inch O.D.
- MPN: 5788A-MT
- UPC: 054007434221
- PPN: MMM-5788A-MT
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QS-III Inline Splice Kit, 25/28 kV, 1.24-2.07 Inch O.D.
Specifications
Key Specifications
| 3M ID | 80611231798 |
|---|---|
| Conductor Sizes | 1000 kcmil, 500 kcmil, 750 kcmil |
| Insulation O.D. Range | 1.24 - 2.07 Inch |
| Insulation Outside Diameter Range | 1.24 - 2.07 Inch |
| Product Series | 5786A-MT, 5787A-MT & 5788A-MT Series |
| Product Type | Splice |
| RoHS EU Comments | Contact 3M for information |
| Splice Type | Inline, Trifurcating |
| Trademark | 3M |
| Typical Splice Length (metric) | 168 cm |
| Case Quantity | 1 |
|---|---|
| Connector O.D. Range | 1.05-2.07 Inch |
| Insulation O.D. Range (Metric) | 31,5 - 52,6 mm |
| Number of Conductors | 3 |
| Product Technology | Cold Shrink |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Longitudinally Corrugated (LC), Tape Shield, UniShield®, Wire Shield |
| Suggested Accessory | 3M™ Trifurcating Accessory for 3-C to 3 Single Conductors MT-E |
| Typical Splice Length | 66 in |
| Voltage | 25/28 kV |
