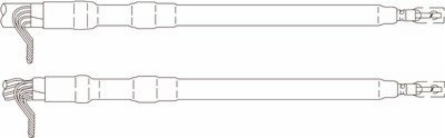

3M 7653-T-HSG-150 Cold Shrink QT-III Termination Kit, 0.72-1.29 Inch Cable O.D., 5-35 kV
- MPN: 7653-T-HSG-150
- UPC: 054007417736
- PPN: MMM-7653-T-HSG-150
CAD
$542.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Cold Shrink QT-III Termination Kit, 0.72-1.29 Inch Cable O.D., 5-35 kV
Specifications
Key Specifications
- 3M ID
- 80610834220
- BIL
- 150 kV
- Cable Insulation Outside Diameter Range
- 0.72-1.29 in
- Case Quantity
- 1
- Conductor Size by Voltage
- (5 kV) 300-500 kcmil, (8 kV) 250-500 kcmil, (15 kV) 2/0 AWG-300 kcmil, (25/28 kV) 2-4/0 AWG, (35 kV) 2-2/0 AWG
- Family
- QT-III
- Insulation Level
- 100%, 133%
- Lug/Stem Connector Included in Kit
- No
- Number of Conductors
- 1
- Product Series
- 7650-T-HSG-150
- RoHS EU Comments
- Contact 3M for information
- Trademark
- 3M
Agency ApprovalsIEEE
Breakout BootNo
Cable Insulation Outside Diameter Range (metric)18.3-32.8 mm
Compatible LugQL2-A-2-250
Conductor Sizes1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil, 500 kcmil
Indoor/OutdoorIndoor Non-skirted
Insulation RejacketingNo
Maximum Installed Length16.00 in
Number of Skirts0
RoHS 2011/65/EU CompliantUndetermined
Shielding TypeLongitudinally Corrugated (LC), Tape Shield, Wire-Over-Tape Shield
Voltage15 kV, 25/28 kV, 35 kV, 5 kV, 8 kV
