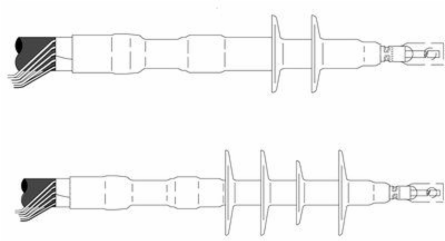

3M 7652-S-4-TI Cold Shrink QT-III Termination Kit, 0.64-1.08 Inch Cable O.D., 5-25/28 kV
- MPN: 7652-S-4-TI
- UPC: 054007434092
- PPN: MMM-7652-S-4-TI
CAD
$729.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-III Termination Kit, 0.64-1.08 Inch Cable O.D., 5-25/28 kV
Specifications
Key Specifications
- 3M ID
- 80611200082
- BIL
- 150 kV
- Cable Insulation Outside Diameter Range
- 0.64-1.08 in
- Case Quantity
- 1
- Conductor Sizes
- 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil
- Indoor/Outdoor
- Outdoor Skirted
- Insulation Rejacketing
- No
- Lug/Stem Connector Included in Kit
- No
- Number of Conductors
- 1
- Product Series
- 7640-S-TI, 7650-S-TI Series
- RoHS EU Comments
- Contact 3M for information
- Trademark
- 3M
Agency ApprovalsIEEE
Breakout BootNo
Cable Insulation Outside Diameter Range (metric)16.3-27.4 mm
Conductor Size by Voltage(5 kV) 4/0 AWG-400 kcmil, (8 kV) 3/0 AWG-300 kcmil, (15 kV) 2-4/0 AWG, (25/28 kV) 2-1/0 AWG
FamilyQT-III
Insulation Level100%, 133%
Jacket Outside Diameter Range0.97-1.48 Inch
Maximum Installed Length12.25 in
Number of Skirts4
RoHS 2011/65/EU CompliantUndetermined
Shielding TypeConcentric Neutral (CN), Jacketed Concentric Neutral (JCN)
Voltage15 kV, 25/28 kV, 5 kV, 8 kV
