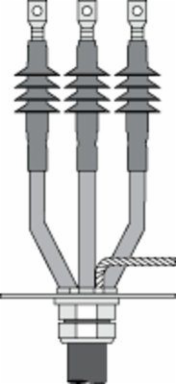

3M 7692-S-4-3-RJS Cold Shrink QT-III 3-Conductor Termination Kit, 0.70-0.92 Inch, 15-28 kV
- MPN: 7692-S-4-3-RJS
- UPC: 054007047261
- PPN: MMM-7692-S-4-3-RJS
CAD
$3083.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-III 3-Conductor Termination Kit, 0.70-0.92 Inch, 15-28 kV
Specifications
Key Specifications
| 3M ID | 80610988372 |
|---|---|
| BIL | 150 kV |
| Breakout Boot | No |
| Cable Insulation Outside Diameter Range (metric) | 17.8-23.4 mm |
| Conductor Size by Voltage | (5 kV) 4/0 AWG-400 kcmil, (8 kV) 3/0 AWG-350 kcmil, (15 kV) 1/0-4/0 AWG, (25/28 kV) 2-1/0 AWG |
| Family | QT-III |
| Insulation Rejacketing | Yes |
| Maximum Installed Length | 12.25 in |
| Number of Skirts | 4 |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Tape Shield, UniShield®, Wire Shield |
| Voltage | 15 kV, 25/28 kV, 5 kV, 8 kV |
| Agency Approvals | AEIC, IEC, JIS |
|---|---|
| Brand | 3M™ |
| Cable Insulation Outside Diameter Range | 0.70-0.92 in |
| Case Quantity | 1 |
| Conductor Sizes | 1/0 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil |
| Indoor/Outdoor | Outdoor Skirted |
| Lug/Stem Connector Included in Kit | No |
| Number of Conductors | 3 |
| Product Series | 7600-S-RJS |
| RoHS EU Comments | Contact 3M for information |
| Trademark | 3M |
| Voltage Application | Medium Voltage |
