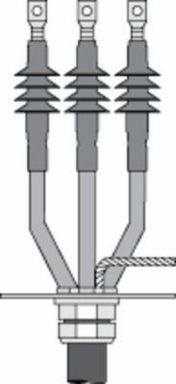

3M 7622-S-2-3-RJS Cold Shrink QT-III 3-Conductor Termination Kit, 0.70-0.92 Inch O.D., 15 kV
- MPN: 7622-S-2-3-RJS
- UPC: 054007047247
- PPN: MMM-7622-S-2-3-RJS
CAD
$2312.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-III 3-Conductor Termination Kit, 0.70-0.92 Inch O.D., 15 kV
Specifications
Key Specifications
- 3M ID
- 80610988356
- BIL
- 110 kV
- Breakout Boot
- No
- Cable Insulation Outside Diameter Range (metric)
- 17.8-23.4 mm
- Conductor Size by Voltage
- (5 kV) 4/0 AWG-400 kcmil, (8 kV) 3/0 AWG-350 kcmil, (15 kV) 1/0-4/0 AWG
- Family
- QT-III
- Insulation Rejacketing
- Yes
- Maximum Installed Length
- 9.80 in
- Number of Skirts
- 2
- RoHS 2011/65/EU Compliant
- Undetermined
- Shielding Type
- Tape Shield, UniShield®, Wire Shield
- Voltage
- 15 kV, 5 kV, 8 kV
Agency ApprovalsAEIC, IEC, JIS
Brand3M™
Cable Insulation Outside Diameter Range0.70-0.92 in
Case Quantity1
Conductor Sizes1/0 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil
Indoor/OutdoorOutdoor Skirted
Lug/Stem Connector Included in KitNo
Number of Conductors3
Product Series7600-S-RJS
RoHS EU CommentsContact 3M for information
Trademark3M
Voltage ApplicationMedium Voltage
