3M QSLV-M(2-500) 3M™ Cold Shrink Quick Splice Low Voltage QSLV-M 2-500, Non-shielded, 1kV, 10/case
- MPN: QSLV-M(2-500)
- UPC: 051128572375
- PPN: MMM-QSLV-M 2-500
CAD
$199.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

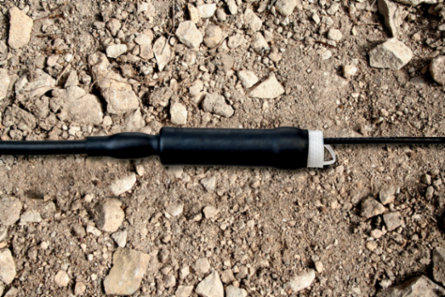

3M™ Cold Shrink Quick Splice Low Voltage QSLV-M are open-ended tubular rubber sleeves with sealing mastic on each end which are factory expanded and assembled onto a unique three-core system. Two cores, one on each end, are removed after the QSLV-M insulator has been centered over an inline connector, allowing the ends of the tube to shrink and form a water-resistant seal. The third, center segment of the core remains inside the cold shrink tube, acting as a support structure. Sizing of the cores and tube, along with the sealing mastic on each end, is designed to accommodate the variance in connectors and connector crimping techniques and final dimensions without degrading the seal and insulating characteristics of the EPDM rubber tube, while also making core removal easy. Two diameter sizes will cover a range of 1 kV or less cable from 8 AWG through 1000 kcmil for copper and 8 AWG through 500 kcmil for aluminum conductors with crimped connectors. In aerial applications where intense UV radiation will be common and visual inspection is not possible, it is recommended to overwrap the tubing with Scotch® Super 33+™ Vinyl Electrical Tape or Scotch® Self-Fusing Silicone Rubber Electrical Tape 70. Note: Insulator may be used on cable sizes outside of the recommended range provided both cables are within the insulation O.D. range, and the connector meets the dimensional requirements shown in the table.
Features
- Rubber sleeve with sealing mastic provides a water-resistant sealing
- Factory-expanded for easy installation
- For direct-bury, secondary low-voltage, non-shielded cable splices
- Rated for up to 1 kV applications
- Splices both aluminum and copper conductors
Documentation & Downloads
Specifications
Key Specifications
| Manufacturer Catalog Number | 7000058805 |
|---|---|
| Cable Type | Power Cable |
| Conductor Material | Aluminum|| Copper |
| Insulation O.D. Range | 0.40-1.60 in |
| Insulation Outer Diameter (Imperial) | 0.4 in|| 0.41 in|| 0.42 in|| 0.43 in|| 0.44 in|| 0.45 in|| 0.46 in|| 0.47 in|| 0.48 in|| 0.49 in|| 0.5 in|| 0.51 in|| 0.52 in|| 0.53 in|| 0.54 in|| 0.55 in|| 0.56 in|| 0.57 in|| 0.58 in|| 0.59 in|| 0.6 in|| 0.61 in|| 0.62 in|| 0.63 in|| 0.64 in|| 0.65 in|| 0.66 in|| 0.67 in|| 0.68 in|| 0.69 in|| 0.7 in|| 0.71 in|| 0.72 in|| 0.73 in|| 0.74 in|| 0.75 in|| 0.76 in|| 0.77 in|| 0.78 in|| 0.79 in|| 0.8 in|| 0.81 in|| 0.82 in|| 0.83 in|| 0.84 in|| 0.85 in|| 0.86 in|| 0.87 in|| 0.88 in|| 0.89 in|| 0.9 in|| 0.91 in|| 0.92 in|| 0.93 in|| 0.94 in|| 0.95 in|| 0.96 in|| 0.97 in|| 0.98 in|| 0.99 in|| 1 in|| 1.01 in|| 1.02 in|| 1.03 in|| 1.04 in|| 1.05 in|| 1.06 in|| 1.07 in|| 1.08 in|| 1.09 in|| 1.1 in|| 1.11 in|| 1.12 in|| 1.13 in|| 1.14 in|| 1.15 in|| 1.16 in|| 1.17 in|| 1.18 in|| 1.19 in|| 1.2 in|| 1.21 in|| 1.22 in|| 1.23 in|| 1.24 in|| 1.25 in|| 1.26 in|| 1.27 in|| 1.28 in|| 1.29 in|| 1.3 in|| 1.31 in|| 1.32 in|| 1.33 in|| 1.34 in|| 1.35 in|| 1.36 in|| 1.37 in|| 1.38 in|| 1.39 in|| 1.4 in|| 1.41 in|| 1.42 in|| 1.43 in|| 1.44 in|| 1.45 in|| 1.46 in|| 1.47 in|| 1.48 in|| 1.49 in|| 1.5 in|| 1.51 in|| 1.52 in|| 1.53 in|| 1.54 in|| 1.55 in|| 1.56 in|| 1.57 in|| 1.58 in|| 1.59 in|| 1.6 in |
| Manufacturing Origin | USA |
| Maximum Connector Length (Metric) | 108 mm |
| Maximum Connector O.D. (Metric) | 38 mm |
| Overall Diameter (Metric) | 41 mm |
| Splice Type | Cold Shrink |
| Cable Shielding | Non-shielded |
|---|---|
| Color Family (incorporate Product Color) | Black |
| Conductor Size Range | 2 AWG–1000 kcmil (Cu), 2 AWG–500 kcmil (Al) |
| Insulation O.D. Range (Metric) | 10-41 mm |
| Insulation Outer Diameter (Metric) | 10.16 mm|| 10.414 mm|| 10.668 mm|| 10.922 mm|| 11.176 mm|| 11.43 mm|| 11.684 mm|| 11.938 mm|| 12.192 mm|| 12.446 mm|| 12.7 mm|| 12.954 mm|| 13.208 mm|| 13.462 mm|| 13.716 mm|| 13.97 mm|| 14.224 mm|| 14.478 mm|| 14.732 mm|| 14.986 mm|| 15.24 mm|| 15.494 mm|| 15.748 mm|| 16.002 mm|| 16.256 mm|| 16.51 mm|| 16.764 mm|| 17.018 mm|| 17.272 mm|| 17.526 mm|| 17.78 mm|| 18.034 mm|| 18.288 mm|| 18.542 mm|| 18.796 mm|| 19.05 mm|| 19.304 mm|| 19.558 mm|| 19.812 mm|| 20.066 mm|| 20.32 mm|| 20.574 mm|| 20.828 mm|| 21.082 mm|| 21.336 mm|| 21.59 mm|| 21.844 mm|| 22.098 mm|| 22.352 mm|| 22.606 mm|| 22.86 mm|| 23.114 mm|| 23.368 mm|| 23.622 mm|| 23.876 mm|| 24.13 mm|| 24.384 mm|| 24.638 mm|| 24.892 mm|| 25.146 mm|| 25.4 mm|| 25.654 mm|| 25.908 mm|| 26.162 mm|| 26.416 mm|| 26.67 mm|| 26.924 mm|| 27.178 mm|| 27.432 mm|| 27.686 mm|| 27.94 mm|| 28.194 mm|| 28.448 mm|| 28.702 mm|| 28.956 mm|| 29.21 mm|| 29.464 mm|| 29.718 mm|| 29.972 mm|| 30.226 mm|| 30.48 mm|| 30.734 mm|| 30.988 mm|| 31.242 mm|| 31.496 mm|| 31.75 mm|| 32.004 mm|| 32.258 mm|| 32.512 mm|| 32.766 mm|| 33.02 mm|| 33.274 mm|| 33.528 mm|| 33.782 mm|| 34.036 mm|| 34.29 mm|| 34.544 mm|| 34.798 mm|| 35.052 mm|| 35.306 mm|| 35.56 mm|| 35.814 mm|| 36.068 mm|| 36.322 mm|| 36.576 mm|| 36.83 mm|| 37.084 mm|| 37.338 mm|| 37.592 mm|| 37.846 mm|| 38.1 mm|| 38.354 mm|| 38.608 mm|| 38.862 mm|| 39.116 mm|| 39.37 mm|| 39.624 mm|| 39.878 mm|| 40.132 mm|| 40.386 mm|| 40.64 mm |
| Maximum Connector Length | 4.25 in |
| Maximum Connector O.D. | 1.500 in |
| Number of Conductors | 3 |
| Overall Length (Metric) | 108 mm |
| Voltage | 1 kV |
Packaging
| Package Length | 20.00000 in |
|---|---|
| Package Weight | 0.6400 LBS |
| Package Height | 1.50000 in |
|---|
