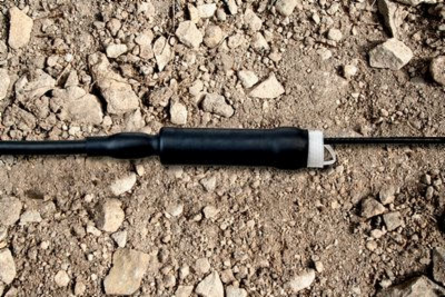

3M QSLV-M(8-2/0) 3M Cold Shrink Quick Splice Low Voltage QSLV-M(8-2/0), Non-shielded, 1 kV, Standard, 10 per case
- MPN: QSLV-M(8-2/0)
- UPC: 051128572368
- PPN: MMM-QSLV-M 8-2/0
CAD
$126.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3M Cold Shrink Quick Splice Low Voltage QSLV-M(8-2/0), Non-shielded, 1 kV, Standard, 10 per case
Specifications
Key Specifications
| 3M ID | 80611438369 |
|---|---|
| Cable Type | Power Cable |
| Conductor Material | Aluminum, Copper |
| Connector Included | No |
| Dielectric Strength (V/mil) | 365 V/mil |
| Indoor/Outdoor | Both |
| Insulation O.D. Range (Metric) | 5-19 mm |
| Maximum Connector Length (metric) | 63 mm |
| Number of Conductors | 3 |
| RoHS 2011/65/EU Compliant | Yes |
| Shielding Type | Non-shielded |
| Trademark | 3M |
| Voltage Rating | 0.6/1 kV |
| Cable Outside Diameter (metric) | 19 mm |
|---|---|
| Color | Black |
| Conductor Sizes | 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 4 AWG, 6 AWG, 8 AWG |
| Connector Maximum Outside Diameter | 0.687 in |
| Elongation | 750 % |
| Insulation O.D. Range | 0.20-0.75 in |
| Maximum Connector Length | 2.50 in |
| Model | Cold Shrink |
| Product Type | Splice |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Splice Type | Cold Shrink, Inline Splice |
| Voltage | 1 kV |
