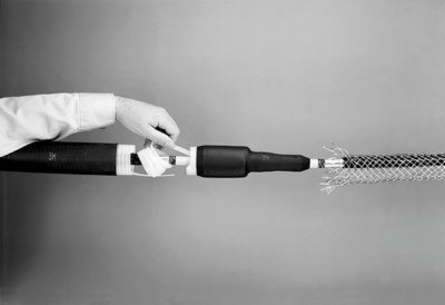

3M 5553 3M Cold Shrink Rubber Splice Kit 5553, Tape Shield, Wire Shield, UniShield, 5/8 kV, 500-1000 kcmil (Cu or Al), 23 in, 1 per case

3M Cold Shrink Rubber Splice Kit 5553, Tape Shield, Wire Shield, UniShield, 5/8 kV, 500-1000 kcmil (Cu or Al), 23 in, 1 per case

3M 5553 3M Cold Shrink Rubber Splice Kit 5553, Tape Shield, Wire Shield, UniShield, 5/8 kV, 500-1000 kcmil (Cu or Al), 23 in, 1 per case

MPN: 5553
UPC: 054007090915
PPN: MMM-5553

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3472.24/ EA

Loading add to cart quantity...

Description

3M Cold Shrink Rubber Splice Kit 5553, Tape Shield, Wire Shield, UniShield, 5/8 kV, 500-1000 kcmil (Cu or Al), 23 in, 1 per case

Specifications

Specifications

3M ID: 80610735286

Cable Type: Cable with rubber insulation

Color: Black

Length: 23 Inch

Material: EPDM-rubber

Maximum Connector Length (metric): 134.6 mm (Al), 160.0 mm (Cu)

Product Series: 5550 Series

Product Type: Splice

RoHS EU Comments: Contact 3M for information

Splice Type: Cold Shrink, Inline

Trademark: 3M

Typical Splice Length (metric): 584.2 mm

Voltage Application: Medium Voltage

ApplicationsCable Connection

Case Quantity1

Conductor Sizes1000 kcmil, 500 kcmil, 750 kcmil

Length (Metric)584 mm

Maximum Connector Length5.3 inch (Al), 6.3 inch (Cu)

Number of Conductors1

Product TechnologyTape, Cold Shrink

RoHS 2011/65/EU CompliantUndetermined

Shielding TypeTape Shield, UniShield®, Wire Shield

Suggested Accessory3M™ Ground Strap Assembly GS-3

Typical Splice Length23.0 in

Voltage5 - 8 kV
