3M 2MCID Fire Barrier Cast-In Device for Metal Pipes 2 Inch, 3 Hour Fire Rating, 12/case
- MPN: 2MCID
- PPN: MMM-2MCID
CAD
$54.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
3M™ Fire Barrier Cast-In Devices for Metal Pipes provide one-step firestopping for penetrations through fire-rated concrete floor assemblies. Instead of drilling holes, installers simply attach the devices directly to floor decking, pour slabs around them and route penetrants after curing. Heights are easily adjustable, and these intumescent devices are rated for up to 3-hour fire protection.
Features
- Eliminates time and expense of drilling firestop holes in concrete
- Designed specifically for metal pipes and other metallic through penetrants

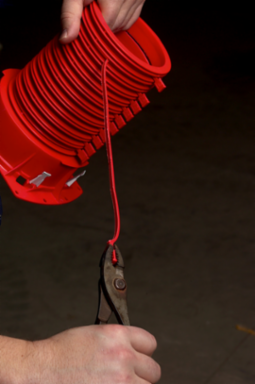

- Tear strips allow installers to easily adjust height for various concrete thicknesses

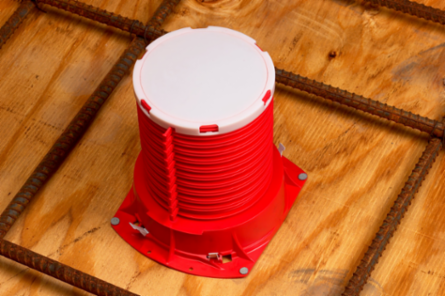

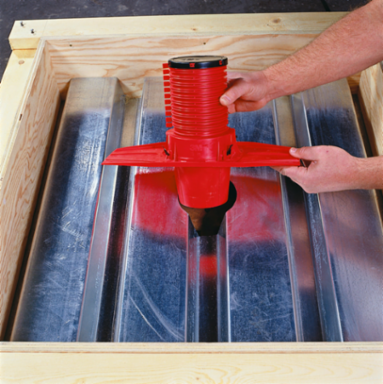

- Installs securely by attaching directly to forms and floor decking
- Rugged one-piece design withstands impact during everyday construction
Documentation & Downloads
Specifications
Key Specifications
- Manufacturer Catalog Number
- 7100138825
- Fire Rating
- 3 Hour
- Overall Diameter (Metric)
- 51 mm
- Size
- 2 in
- Water-tight
- No
Color Family (incorporate Product Color)Red
Overall Diameter (Imperial)2 in
Overall Width (Imperial)2 in
Suggested Application 1This 3M™ Fire Barrier Cast-In Device may be applied to 2'' metallic pipes, single and bundled cables, insulated pipes and HVAC line sets penetrating concrete floors with fire-ratings up to 3 hours. Use the appropriately-sized device as listed in system details (black-capped devices for metallic penetrations and white-capped devices for non-metallic penetrations).
