3M 4MCID Fire Barrier Cast-In Device 4 Inch for Metal Pipes, 3 Hour Fire Rating

MPN: 4MCID
PPN: MMM-4MCID

$83.50

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

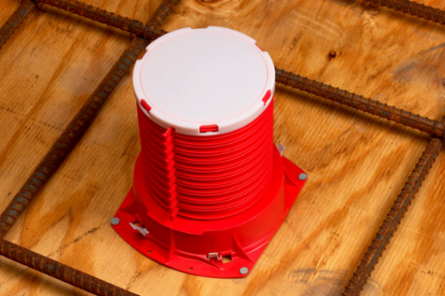

3M™ Fire Barrier Cast-In Devices for Metal Pipes provide one-step firestopping for penetrations through fire-rated concrete floor assemblies. Instead of drilling holes, installers simply attach the devices directly to floor decking, pour slabs around them and route penetrants after curing. Heights are easily adjustable, and these intumescent devices are rated for up to 3-hour fire protection.

Features

Eliminates time and expense of drilling firestop holes in concrete
Designed specifically for metal pipes and other metallic through penetrants

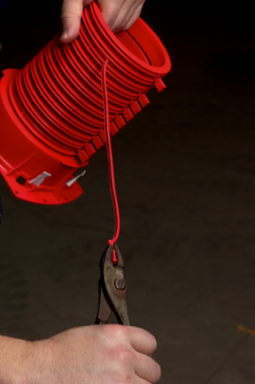

Tear strips allow installers to easily adjust height for various concrete thicknesses

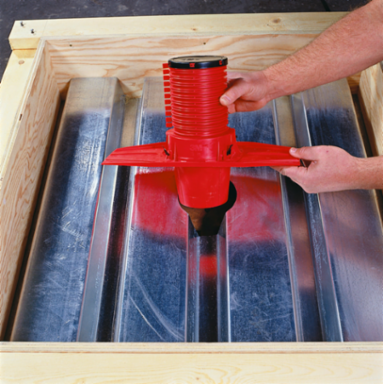

Installs securely by attaching directly to forms and floor decking
Rugged one-piece design withstands impact during everyday construction

Documentation & Downloads

Specifications

Key Specifications

Manufacturer Catalog Number	7100138823
Fire Rating	3 Hour
Overall Diameter (Metric)	102 mm
Size	4 in
Water-tight	No

Color Family (incorporate Product Color)	Red
Overall Diameter (Imperial)	4 in
Overall Width (Imperial)	4 in
Suggested Application 1	This 3M™ Fire Barrier Cast-In Device may be applied to 4'' metallic pipes, single and bundled cables, insulated pipes and HVAC line sets penetrating concrete floors with fire-ratings up to 3 hours. Use the appropriately-sized device as listed in system details (black-capped devices for metallic penetrations and white-capped devices for non-metallic penetrations).
