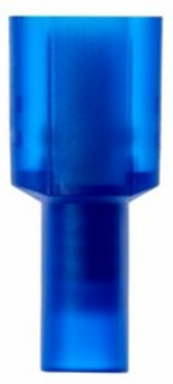

3M MTI14-250Q Nylon Fully Insulated Male Disconnect Terminal, AWG 16-14, 0.25 Inch Width, 0.95 Inch Length
- MPN: MTI14-250Q
- UPC: 051128600245
- PPN: MMM-MTI14-250Q
CAD
$21.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This tab accepts a wire range of 16-14, a stud/tab size of .250 and has a case quantity of 10 bags.
Specifications
Key Specifications
| Maximum Insulation Outer Diameter | 0.17 Inch |
|---|---|
| Brand | Highland |
| UL File Number | E70512 |
| Packaging | 25 per bag |
| Diameter | 0.3 Inch |
| Width | 0.44 Inch |
| Barrel Style | Butted |
| Thickness | 0.032 Inch |
| Fastener Orientation | Male |
| Terminal Style | Fully Insulated |
| Length | 0.95 Inch |
| RoHS 2011/65/EU Compliant | Yes |
|---|---|
| CSA File Number | LR22190 |
| Barrel Length | 0.25 Inch |
| Trademark | Highland |
| Pad Width | 0.25 Inch |
| Conductor Sizes | 16 - 14 AWG |
| Terminal Type | Disconnect |
| Mates with Male Tab Width (W') | 0.25 Inch |
| Agency Approvals | UL and CSA |
| Insulation Material | Nylon |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
