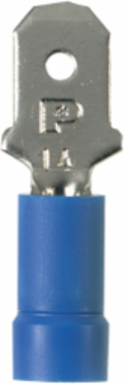

Panduit EDV14-250M-Q StrongHold™ EDV14-250M-Q Loose Piece Disconnect Terminal
- MPN: EDV14-250M-Q
- UPC: 613056366664
- PPN: PAN-EDV14-250M-Q
- UNSPSC: 39121409
CAD
$0.41
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
StrongHold™ Male Disconnect, vinyl barrel insulated, 16 - 14 AWG, .250 x .032 tab size.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Maximum Wire Insulation Diameter (mm)
- 4.6
- Overall Length (In.)
- 0.96
- Tab Size (In.)
- 0.250 x 0.032
- Maximum Voltage (kV)
- 0.6
- Color Code
- Blue
- Product Type
- Disconnect
- Minimum Metric Conductor Size (mm²)
- 1.5
- For Use With
- CT-1550, CT-1551, CT-2300/ST, CT-2500/L
- Insulation Material
- Vinyl - Barrel Insulated
- Wire Strip Length (mm)
- 7.1
- Maximum Voltage (V)
- 600
- Disconnect Type
- Male Tab Disconnect
- Overall Width (mm)
- 6.3
- Sub Brand
- StrongHold™
- Copper Conductor Size
- 16-14 AWG
Any Reason Not to SellN
Overall Width (In.)0.25
Maximum Wire Insulation Diameter (In.)0.18
Maximum Operating Temperature (°F)221
Seam TypeBrazed
Maximum Metric Conductor Size (mm²)2.5
Overall Length (mm)24.3
Wire Strip Length (In.)9/32
Base MaterialBrass
Maximum Operating Temperature (°C)105
Packaging TypeLoose Piece
Overall Thickness (mm)8
Finish/CoatingTin-Plated
Tab Size (mm)6.3
Insulation TypeBarrel Insulated
Overall Thickness (In.)0.03
Wire Size16-14 AWG
Packaging Details
- UPC
- 61305636666
- Standard Package Volume Ft3
- 0.0103
- Std Package Height In
- .85
- Std Package Length In
- 4.55
- Std Package Width In
- 3
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 25
- Standard Carton Volume Ft3
- 0.1031
- Std Carton Height In
- 4.35
- Std Carton Length In
- 9.1
- Std Carton Width In
- 4.4
- Std Ctn Qty
- 250
- EAN
- 00613056366664
- Mercury Content Indicator
- N
- Min Order Qty
- 250.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00613056366664
Standard Package Weight Pounds0.0825
Std Package Height MM21.59
Std Package Length MM115.57
Std Package Width MM76.2
UOM EA PKPK
GTIN Carton50613056366669
Standard Carton Weight Pounds0.8250
Std Carton Height MM110.49
Std Carton Length MM231.14
Std Carton Width MM111.76
Min. Order UOMPiece
REACH StatusN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
