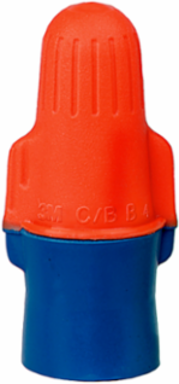

3M O/B+POUCH 3M™ Performance Plus™ Wire Connector O/B+POUCH, 100/Pouch
- MPN: O/B+POUCH
- UPC: 054007431527
- PPN: MMM-O/B POUCH
CAD
$0.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible springthat has generous room for expansion and a strong bite for a secure connection. Becauseof their increased wire range, just three Performance Plus wire connectors handle thework of eight standard connectors. And theflexible skirt helps prevent copper exposure for enhanced safety.
Features
- Strong bite for a secure, reliable connection
- Flexible spring expands for greater wire range and reuse
- Dual color coded: one connector does the job of two traditional connectors in the majority of applications
- UL Listed
Documentation & Downloads
Specifications
Key Specifications
- Manufacturer Catalog Number
- 7100127195
- Connection Type
- Wire
- Flame Retardant
- Yes
- Insulation Color
- Orange/Blue
- Manufacturing Origin
- USA
- Maximum Conductor Size
- 12 AWG
- Maximum Insulation Outside Diameter
- 0.145 in
- Maximum Operating Temperature (Fahrenheit)
- 221 Degree Fahrenheit
- Maximum Voltage Rating
- 600 V
- Minimum Conductor Size
- 22 AWG
- Voltage Rating
- 600 V
- Wire Gauge
- Twist-on Wire Connectors
Color Family (incorporate Product Color)Multi-Color
Connector StyleTwist On
Grease Filling Against CorrosionNo
Insulation MaterialPolypropylene and thermoplastic elastomer
MaterialPlastic
Maximum Insulation Outer Diameter (Metric)3.7 mm
Maximum Operating Temperature (Celsius)105 Degree Celsius
Maximum Recommended Voltage Rating600 V
Maximum Wire Gauge12 AWG
Minimum Wire Gauge22 AWG
Wire Connector TypeTwist-on Wire Connectors
Packaging
- Package Height
- 7.75000 in
Package Weight0.3243 LBS
