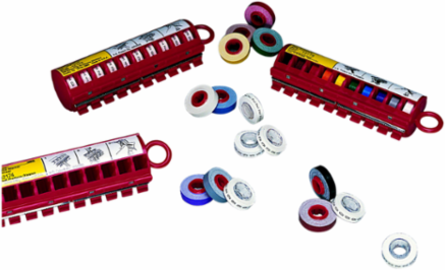

3M SDR-D ScotchCode Wire Marker Tape Refill Roll, White, 0.145 Inch Diameter, 600 V, 250°F
- MPN: SDR-D
- UPC: 054007093916
- PPN: MMM-SDR-D
CAD
$8.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3M™ ScotchCode™ Wire Marker Tape Refill Roll SDR is available in ten NEMA colors, individual numbers and consecutive numbers, letters and symbols.
Features
- High tack, acrylic adhesive that resists solvents, oil and water and adheres firmly to insulation surfaces
- Available in ten NEMA colors, individualnumbers and consecutive numbers, letters and symbols
- Can be used forapplications with operating temperatures between -40°F (-40°C) to 250°F (121°C)
Documentation & Downloads
Specifications
Key Specifications
- Manufacturer Catalog Number
- 7000031519
- Application
- Marking Wire and Cable
- Dispenser/Marker Type
- Tape Roll Refill
- Legend Color
- White
- Marker ID Style
- Pre-printed
- Maximum Insulation Outer Diameter (Metric)
- 3.7 mm
- Maximum Operating Temperature (Celsius)
- 121 Degree Celsius
- Maximum Recommended Voltage Rating
- 600 V
- Printed Text Type
- Letter - D
- UV Resistant
- No
Adhesive MaterialAcrylic
Color Family (incorporate Product Color)White
LegendD
Manufacturing OriginUSA
MaterialPlastic
Maximum Insulation Outside Diameter0.145 in
Maximum Operating Temperature (Fahrenheit)250 Degree Fahrenheit
Max. Number of Cores36
Tape ColorWhite
With a Protective ShoeWire Marker Tape Dispenser and Refill Rolls
Packaging
- Package Length
- 0.93800 in
- Package Weight
- 0.0700 LBS
Package Height3.62500 in
