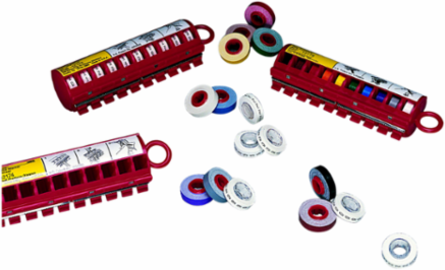

ScotchCode Wire Marker Tape Refill - White, 0.145 Inch Maximum Insulation Diameter
3M

3M SDR-Y ScotchCode Wire Marker Tape Refill - White, 0.145 Inch Maximum Insulation Diameter

  • MPN: SDR-Y
  • PPN: MMM-SDR-Y

CAD

$8.73

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

3M™ ScotchCode™ Wire Marker Tape Refill Roll SDR is available in ten NEMA colors, individual numbers and consecutive numbers, letters and symbols.

Features

  • High tack, acrylic adhesive that resists solvents, oil and water and adheres firmly to insulation surfaces
  • Available in ten NEMA colors, individualnumbers and consecutive numbers, letters and symbols
  • Can be used forapplications with operating temperatures between -40°F (-40°C) to 250°F (121°C)

Documentation & Downloads

Specifications

Key Specifications

Manufacturer Catalog Number
7000031540
Application
Marking Wire and Cable
Dispenser/Marker Type
Tape Roll Refill
Legend Color
White
Marker ID Style
Pre-printed
Material
Plastic
Maximum Insulation Outside Diameter
0.145 in
Maximum Operating Temperature (Fahrenheit)
250 Degree Fahrenheit
Max. Number of Cores
56
Overall Width (Metric)
5.46 mm
Tape Color
White
With a Protective Shoe
Wire Marker Tape Dispenser and Refill Rolls
Adhesive MaterialAcrylic
Color Family (incorporate Product Color)White
LegendY
Manufacturing OriginUSA
Marker TypeDispenser
Maximum Insulation Outer Diameter (Metric)3.7 mm
Maximum Operating Temperature (Celsius)121 Degree Celsius
Maximum Recommended Voltage Rating600 V
Overall Length (Metric)2.4 m
Printed Text TypeLetter - Y
UV ResistantNo

Packaging

Package Length
0.93800 in
Package Weight
0.0700 LBS
Package Height3.62500 in
