3M 40020 Scotchlok Aluminum One Hole Lug, 4 AWG, 5/16 Inch Stud Size, 2.3 Inch Length, Green
- MPN: 40020
- UPC: 054007134183
- PPN: MMM-40020
CAD
$25.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

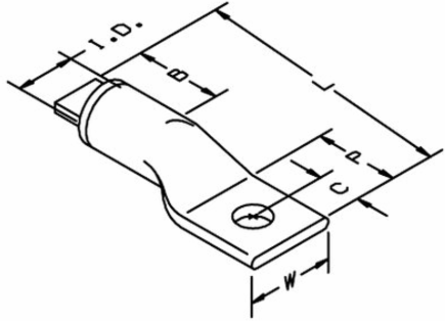

This lug has a 5/16 in Stud Size, a 0.265 in (6,7 mm) I.D., and a 2.300 in (58,4 mm) length
Specifications
Key Specifications
| Stud Sizes | 5/16 inch |
|---|---|
| Length (Metric) | 58.4 mm |
| Pad Length (metric) | 24.4 mm |
| Inside Diameter | 0.265 Inch |
| Inside Diameter (metric) | 6.7 mm |
| Outside Diameter | 0.468 Inch |
| Barrel Style | Standard Barrel |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Barrel Length | 0.94 Inch |
| Length | 2.3 Inch |
| Center of Hole to End of Pad (metric) | 11.2 mm |
| Center of Hole to End of Pad | 0.44 Inch |
| Conductor Sizes | 4 AWG |
|---|---|
| Pad Length | 0.96 Inch |
| Lug Base Metal | Aluminum |
| Pad Width (metric) | 15.7 mm |
| Number of Holes | 1 |
| Color | Green |
| Pad Width | 0.62 Inch |
| Trademark | Scotchlok |
| Outside Diameter (metric) | 11.9 mm |
| For Use With | Aluminum or Copper Conductors |
| RoHS 2011/65/EU Compliant | Yes |
| Barrel Length (metric) | 23.8 mm |
