Burndy K2A29U Aluminum Universal Terminal, 2 Conductor, 1 Hole, 6 AWG-250 kcmil, 3/8 Inch Stud
- MPN: K2A29U
- UPC: 781810600108
- PPN: BUR-391010
- UNSPSC: 39121408
CAD
$30.91
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

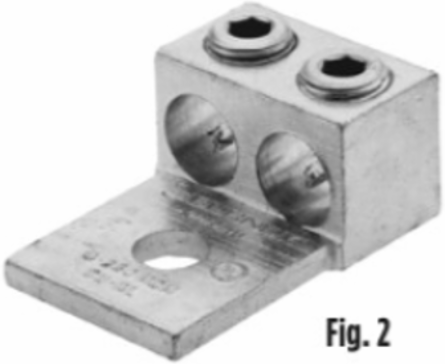

Aluminum Universal Terminal, 2 Conductor, 1 Hole, 6 AWG (Str)-250 kcmil, 3/8" Stud, 2 Screws, Al/Cu Rated, Tin Plated.
Features
- Dual rated panelboard lugs
- Constructed from high strength, extruded aluminum alloy
- Electro tin-plated to provide low contact resistance
Documentation & Downloads
Specifications
Additional
- Temperature Rating
- 194 F
- Conductor Size Range
- 6 AWG - 250 kcmil
- Stud Size
- 3/8 in
- Bolt Size
- 3/8 in
- Width
- 1.66 in
- Material
- Aluminum
- Installation Torque
- 275 lb-in
- Industry Standard(s)
- UL 486A-486B
- Certification Agency
- Prop 65 Compliant
Conductor Quantity2
Number of Holes1
Bolt Hole Size0.38 in
Overall Length2.56 in
Height1.20 in
Connector TypeParallel Set-Screw
UL ListedYes
RoHS ComplianceExempt
