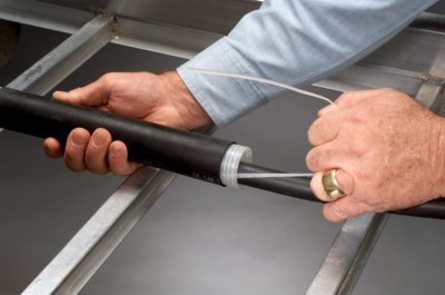

3M SJ-2A Splice Jacket Kit, 15 kV, 3.3 Inch O.D., 6 Kits per Case, Durable EPDM Rubber
- MPN: SJ-2A
- UPC: 054007697435
- PPN: MMM-SJ-2A
CAD
$305.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Splice Jacket Kit, 15 kV, 3.3 Inch O.D., 6 Kits per Case, Durable EPDM Rubber
Specifications
Key Specifications
- 3M ID
- 80610533186
- Brand
- 3M™
- Cable Insulation Outside Diameter Range (metric)
- 23.0-26.8 mm
- Color
- Black
- Conductor Sizes - Solid - Cable Insulation Thickness
- 1 AWG (295 mils), 1/0 AWG (280 mils), 1/0 AWG (295 mils)
- Connector Included
- None
- Elongation
- 635 %
- Length
- 12.4
- Lug/Stem Connector Included in Kit
- No
- Minimum Cable Jacket O.D.
- 1.15 Inch
- Product Series
- 5450 Series
- Product Type
- Splice Jacketing and Rejacketing Kits
- RoHS EU Comments
- Contact 3M for information
- Solid Conductor Sizes
- 1 AWG, 1/0 AWG
- Trademark
- 3M™
- Voltage Application
- Medium Voltage
ApplicationsCable Connection
Cable Insulation Outside Diameter Range0.91-1.06 in
Cable TypeConcentric Neutral (CN), Jacketed Concentric Neutral (JCN)
Conductor Sizes1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG
Conductor Sizes - Stranded - Cable Insulation Thickness1 AWG (280 mils), 1 AWG (295 mils), 1/0 AWG (260 mils), 1/0 AWG (280 mils), 1/0 AWG (295 mils), 2 AWG (295 mils), 2/0 AWG (260 mils), 2/0 AWG (280 mils)
Dielectric Strength (V/mil)490 V/mil
For Use With3M™ 5400 Series Cold Shrink Splices
Length (Metric)316
Maximum Cable Jacket Opening28 Inch
Number of Conductors1
Product TechnologyMolded Rubber
RoHS 2011/65/EU CompliantUndetermined
Shielding TypeJacketed Concentric Neutral (JCN)
Splice TypeInline
Voltage15 kV, 25 kV, 35 kV
