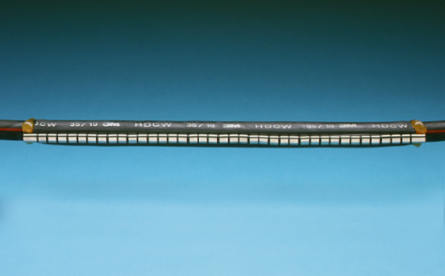

3M HDCW-55/15-500 3M™ Wraparound Heat Shrink Cable Repair Sleeve HDCW-55/15-500, Length19.7 in (500 mm), 5/case
- MPN: HDCW-55/15-500
- PPN: MMM-HDCW55/15-500
CAD
$147.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3M™ Heat Shrink Cable Repair Sleeve HDCW is designed to repair quickly damaged cable jacketing. This wraparound sleeve can be used as insulation material on cable and splices up to 1000V and as jacket repair material on cable up to 35 kV. The cross linked polyolefin construction has an adhesive that offers moisture seal protection.
Features
- Excellent protection against mechanical stress
- Offers excellent corrosion protection on undamaged cables
- Rated for 35 kV applications
- Made of adhesive-lined, cross-linked polyolefin
- Thick-walled sheet is tough and reliable
Specifications
Key Specifications
| Manufacturer Catalog Number | 7000138425 |
|---|---|
| Adhesive Material | Hot melt adhesive layer|| Hot-melt adhesive |
| Color Family (incorporate Product Color) | Black |
| Elongation | 3 % |
| Expanded Inner Diameter (Metric) | 76 mm |
| Halogen Free | Yes |
| Inner Diameter After Shrink (Metric) | 13 mm |
| Inner Diameter Before Shrink (Metric) | 75 mm |
| Material | Adhesive-lined, Cross-Linked Polyolefin |
| Minimum Expanded Tubing I. D. | 2.68 in |
| Overall Length (Imperial) | 19.7 in |
| Recovered Sleeve Diameter | 0.59 in |
| Splice Configuration | Heat Shrink Cable Repair Wrap Sleeve (HDCW) |
| UV Resistant | Yes |
| Adhesive Lined | Yes |
|---|---|
| Chemical Resistant | Yes |
| Dielectric Strength (V/mil) | 17 kV/mm |
| Expanded Inner Diameter | 2.95 in |
| Flame Retardant | No |
| Heat Shrink Type | Heat Shrink Molded Shapes |
| Inner Diameter Before Shrink (Imperial) | 2.95 in |
| Manufacturing Origin | Germany |
| Maximum Voltage Rating | 1 kV to 35 kV |
| Minimum Shrink Temperature (Celsius) | 125 Degree Celsius |
| Overall Length (Metric) | 500 mm |
| Sleeve Length | 19.7 in |
| Splice Type | Heat Shrink |
| Voltage | 1 kV|| 15 kV|| 25/28 kV|| 35 kV|| 8 kV |
Packaging
| Package Length | 20.08000 in |
|---|---|
| Package Weight | 0.7970 LBS |
| Package Height | 0.79000 in |
|---|
