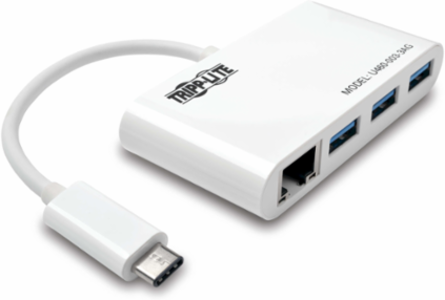

Tripp Lite U460-003-3AG 3-Port USB-C Hub with Gigabit Ethernet and 3 USB-A Ports, 5 Gbps, White
Tripp Lite U460-003-3AG 3-Port USB-C Hub with Gigabit Ethernet and 3 USB-A Ports, 5 Gbps, White
- MPN: U460-003-3AG
- UPC: 037332193803
- PPN: TRP-U460-003-3AG
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$78.10/ EA
Description

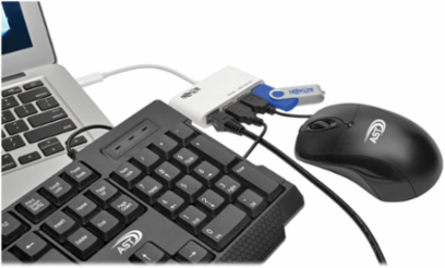

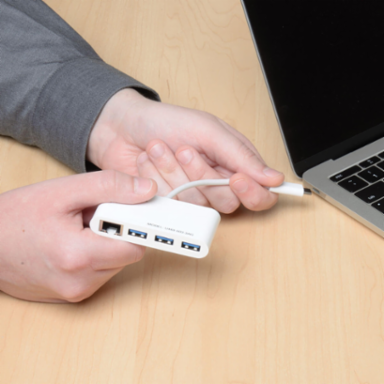

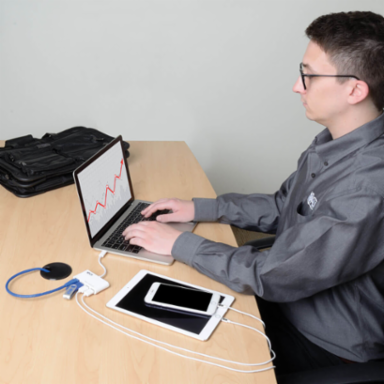

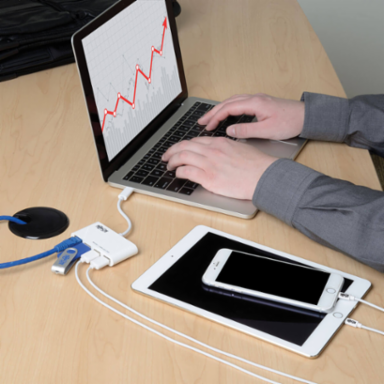

Adds USB-A and Gigabit Ethernet ports to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC.
Features
- Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
- USB-A ports provide up to 0.9A each for charging devices
- Supports true 10/100/1000 Mbps Ethernet network speeds
- Reversible USB-C plug connects in either direction
- Plug-and-play operation with no software or drivers required
- 3-year limited warranty
Specifications
Features & Specifications
- USB Specification
- USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
- UASP Support
- Yes
- Full Duplex Support
- Yes
- Remote Wakeup Support
- Yes
Driver RequiredNo
Auto MDIX SupportYes
Suspend Mode SupportYes
TechnologyCat5/5e; Cat6; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1); USB
Battery
- Battery Charging (1.2 Port)
- No
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 4
- Side B - Connector 1
- (3) USB 3.0 A (FEMALE)
- Connector Plating
- Nickel

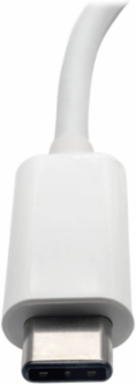

Side A - Connector 1USB C (MALE)
Side B - Connector 2RJ45 (FEMALE)
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- ABS, PVC
- Shipping Weight (lbs.)
- 0.10
- Unit Packaging Type
- Box
ColorWhite
Shipping Dimensions (hwd / in.)0.90 x 3.90 x 5.60

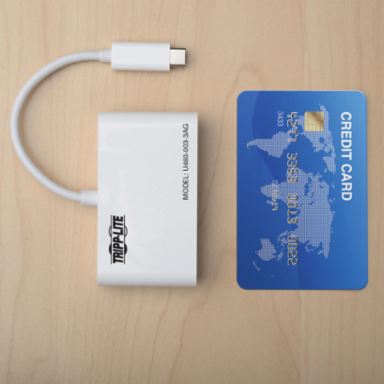

Unit Dimensions (hwd / in.)0.57 x 3.1 x 1.6
Unit Weight (lbs.)0.09
User Interface, Alerts & Controls
- LED Indicators
- Green (Power), Orange (Activity)
Input
- Bus Powered
- Yes
- Product Length (cm.)
- 15.24
- Product Length (m.)
- 0.15
Product Length (in.)6
Product Length (ft.)0.5
Output
- Charging Ports / Amps
- (3) 0.9A
Communications
- Network Speed
- 1Gbps
IEEE Standards Supported802.3; 802.3az; 802.3u; 802.3x
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- Relative Humidity
- 5% to 90% RH, Non-Condensing
- Power Consumption (Watts)
- 2.5
Storage Temperature Range14 to 158 F (-10 to 70 C)
BTUs8.5 BTU/Hr
Power Provided to Connected Device(s)5V 0.9A (4.5W) Output per USB port
Overview
- UPC Code
- 037332193803
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
