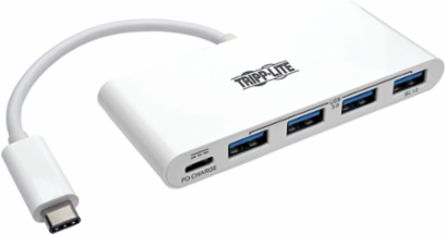

Tripp Lite U460-004-4A-C 4-Port USB-C Hub with Power Delivery, USB 3.0, 60W Charging, White
- MPN: U460-004-4A-C
- UPC: 037332193773
- PPN: TRP-U460-004-4A-C
CAD
$81.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Adds USB-A and USB-C PD charging ports to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC.
Features
- Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
- USB-C PD charging port supports power input up to 20V 3A (60W)
- BC 1.2-compliant USB-A port provides up to 1.5A for charging devices
- Reversible USB-C plug connects in either direction
- Plug-and-play operation with no software or drivers required
- 3-year limited warranty

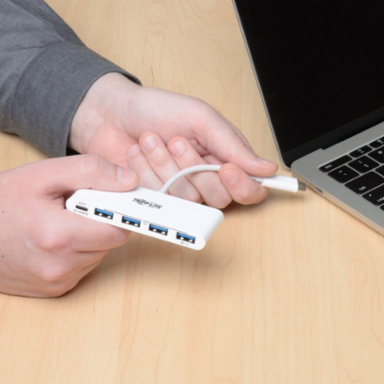

- Turn Your Device’s USB-C Port into a Multiport Workstation

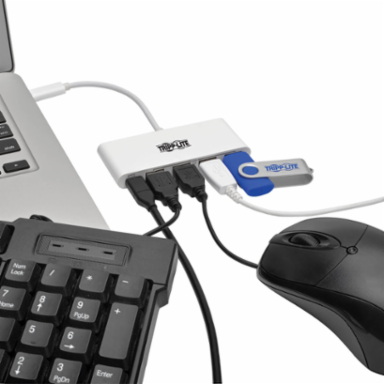

- Connect USB Peripherals

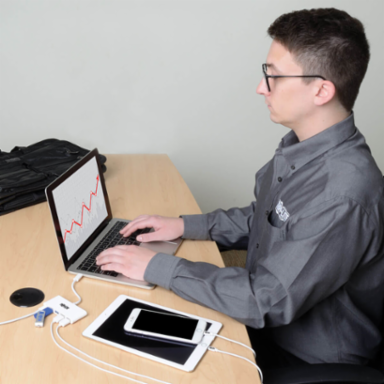

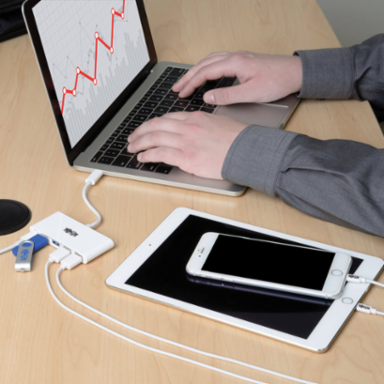

- Charge a Connected Device
- Built-In Cable with Reversible USB-C Connector
Documentation & Downloads
Specifications
Features & Specifications
- USB Specification
- USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
- UASP Support
- No
- Technology
- USB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1); PD Charging
Driver RequiredNo
USB Power Delivery (PD) Charging SupportYes
Battery
- Battery Charging (1.2 Port)
- Yes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 5
- Side B - Connector 1
- (4) USB 3.0 A (FEMALE)
- Connector Plating
- Nickel
Side A - Connector 1USB C (MALE)
Side B - Connector 2USB Type-C (FEMALE)
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- ABS, PVC
- Shipping Weight (lbs.)
- 0.20
- Unit Packaging Type
- Box
ColorWhite
Shipping Dimensions (hwd / in.)0.90 x 3.90 x 5.60
Unit Dimensions (hwd / in.)0.43 x 3.7 x 1.6
Unit Weight (lbs.)0.1
Input
- Bus Powered
- Yes
- Product Length (cm.)
- 15.24
- Product Length (m.)
- 0.15
Product Length (in.)6
Product Length (ft.)0.5
Output
- Charging Ports / Amps
- 0.9A; 1.5A; 3A
Charging Watts60
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- Relative Humidity
- 10% to 90% RH, Non-Condensing
- Power Consumption (Watts)
- 2.2
Storage Temperature Range14 to 158 F (-10 to 70 C)
BTUs7.5 BTU/Hr
Power Provided to Connected Device(s)Up to 20V 3A (60W) Input (USB-C), 5V 1.5A (7.5W) Output BC 1.2 USB port, 5V 0.9A (4.5W) Output per USB port
Overview
- UPC Code
- 037332193773
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
