IPEX 029485 Monobloc Spacer 4-1/2 Inch x 2 Inch x 2 Inch x 3 Inch, Lightweight, 0.123 kg
- MPN: 029485
- UPC: 622454294851
- PPN: IPX-029485
CAD
$5.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

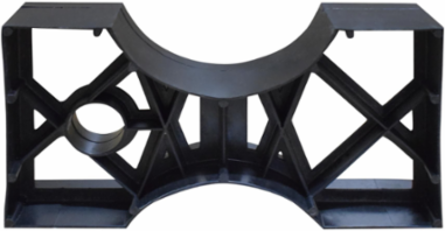

Monobloc spacers accommodate the specific dimensions of DB and EB duct and can be used as both a base spacer and an intermediate spacer for versatility. Monobloc spacers support DB/EB duct in sizes 2” – 5” and are available in a range of configurations that provide 1” to 3” separation between ducts. To minimize jobsite assembly these spacers are available as single, double, triple or quad run units (way). Any number of parallel conduit runs can be accommodated by combining Monobloc spacers (i.e. a 2-way and a 3-way create a 5-way).
Features
- Resilient at all temperatures
- Lightweight and easy to use
- Available in 29 configurations, many with molded-in rebar holder
- Economical choice for virtually any duct bank installation
Documentation & Downloads
Specifications
Key Specifications
| Weight | 0.123 kg |
|---|---|
| Diameter2 Imperial | 2" |
| Diameter4 Imperial | 3" |
| NAFTA | Yes |
| Diameter1 | 4 1/2" |
|---|---|
| Diameter3 Imperial | 2" |
| Country of Origin | Canada |
| Base Quantity Metric | 1.000 |
