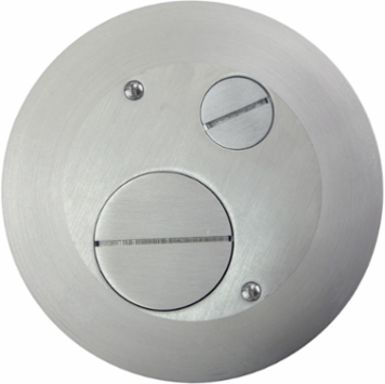

Hubbell Wiring Device-Kellems S1R4FFCVRALU 4 Inch Round Furniture Feed Cover Assembly, Brushed Aluminum Finish, Low Profile
- MPN: S1R4FFCVRALU
- UPC: 783585546278
- PPN: HBL-S1R4FFCVRALU
- UNSPSC: 39121307
CAD
$475.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Concrete Floorboxes, Recessed, 4" CFBS1R4 Series, Furniture Feed Round Cover Assembly, Brushed Aluminum Finish
Features
- Requires CFBS1R4FFCUP
- Surface Style Cover
- (1) 2" Threaded Hub and (1) ¾" Threaded Hub
- Die Cast Aluminum Cover Construction for Enhanced Durability
- Meets UL 514A Scrub Water Requirements
- ADA Compliant
- Low Profile Surface Cover with (1) 1½" Threaded Hub and (1) 3/4" Threaded Hub
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Core Hole | 4 Inch |
| Industry Standard(s) | cULus;UL514 |
| Size | Standard Sized Product |
| Cable Entry | Threaded Hubs |
| Mounting | (2) Screw Mount |
| Special Features | Low Profile Surface Cover with (1) 1½" Threaded Hub and (1) 3/4" Threaded Hub |
| Sub Brand | Recessed Concrete Floor Boxes |
| Width | 5.5 in |
| Engineering Drawing 1 Display Text | S1R4FFCVRALU AutoCAD Drawing |
| Cover Type | Furniture Feed |
| Mounting Type | (2) Screw Mount |
| Style | Cover Flanges |
| Freight Class Code | 06111001 |
| Image Actual Or Representative | A |
| Sub Class Code | A36A352 |
| Material | Cast Aluminum |
| BOX SIZE | 7.700x13.700x14.000 (in) |
| Carton - Number of Sub Packs | 12 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585546278 |
| Case Weight | 7.800 lb. |
| Application - For Use On | Carpet/Tile |
|---|---|
| Cover Shape | Round |
| Mounting Method | Mounts to Adusting Cup |
| Application | For Use with Concrete Floor Boxes |
| Color | Brushed Aluminum |
| Number of Outlet | (1) 3/4" & (1) 1½" Threaded Hub Multi-Service |
| Standard | cULus;UL514 |
| Type | 4" Round Recessed Floor Box Furniture Feed Cover |
| Weight | 0.55 lb. |
| General Literature Asset 1 Display Text | Hubbell SystemOne 4 Inch Solutions |
| Finish Type | Brushed Aluminum Cover |
| Number Of Outlets | (1) 3/4" & (1) 1½" Threaded Hub Multi-Service |
| Class Code | A36 |
| Harmonization Code | 7616995190 |
| MSDS Flag | No |
| Material - Mounting Hardware | Mounting Hardware Included |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 8.650 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 12 EA |
| NAICS Code | 3359326106 |
