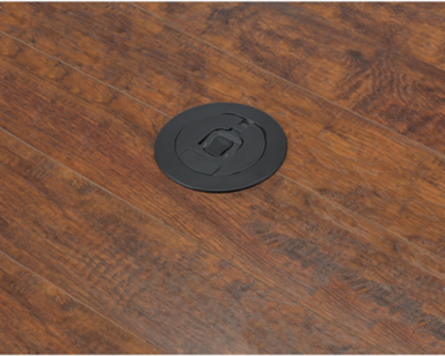

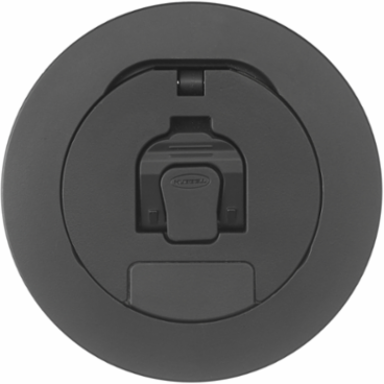

Hubbell Wiring Device-Kellems CFBS1R4CVRBLK 4 Inch Round Cover Assembly, Black Powder Coat Finish, Cast Aluminum
- MPN: CFBS1R4CVRBLK
- UPC: 783585544762
- PPN: HBL-CFBS1R4CVRBLK
- UNSPSC: 39121307
CAD
$513.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Concrete Floorboxes, Recessed, 4" CFBS1R4 Series, Round Cover Assembly, Black Power Coat Finish
Features
- 180 Degree Cover Opening to Lay Flat and Reduce Tripping Hazards
- One Large Cable Egress Doors
- Die Cast Aluminum Cover Construction for Enhanced Durability
- Meets UL 514A Scrub Water Requirements
- ADA Compliant
- Low Profile Surface Cover with One Large Cable Egress Door
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Cover Shape | Round |
| Mounting Method | Mounts to Adusting Cup |
| Application | For Use with Concrete Floor Boxes |
| Color | Black Powder Paint |
| Mounting | (2) Screw Mount |
| Standard | cULus;UL514 |
| Type | 4" Round Recessed Floor Box Cover |
| Weight | 0.75 lb. |
| Engineering Drawing 2 Display Text | 4 INCH SOLUTION Drawing |
| General Literature Asset 2 Display Text | Installation Efficient Product Solutions |
| Mounting Type | (2) Screw Mount |
| Description - Invoice | S1R FB 4 COVER, BLACK POWDER COAT |
| Harmonization Code | 7616995190 |
| MSDS Flag | No |
| Buy America(n) Qualified | BABA Compliant (All status valid till December 2026) |
| Material | Cast Aluminum |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 10.600 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 12 |
| Pallet - GTIN - Package | 70783585544761 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Application - For Use On | Carpet/Tile |
|---|---|
| Industry Standard(s) | cULus;UL514 |
| Size | 4 Inch Round |
| Cable Entry | Through Cover |
| Length | 5.5 in |
| Special Features | Low Profile Surface Cover with One Large Cable Egress Door |
| Sub Brand | Recessed Concrete Floor Boxes |
| Width | 5.5 in |
| Engineering Drawing 1 Display Text | CFBS1R4CVRBLK AutoCAD Drawing |
| General Literature Asset 1 Display Text | Healthcare Product Solutions |
| General Literature Asset 3 Display Text | Hubbell SystemOne 4 Inch Round Recessed Floor Boxes |
| Class Code | A36 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A36A352 |
| Construction | Cast Aluminum |
| Series | Recessed - CFB Series |
| BOX SIZE | 7.400x13.700x13.900 (in) |
| Carton - Number of Sub Packs | 12 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585544762 |
| Case Weight | 10.820 lb. |
| Pallet Height | 44.400 in |
| Pallet Weight | 636.000 lb. |
| NAICS Code | 3359326106 |
