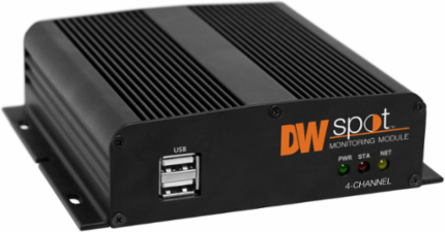

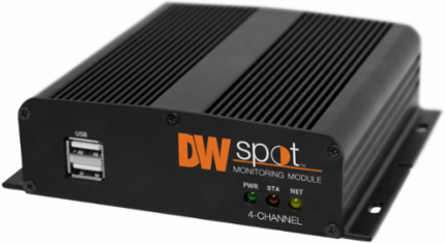

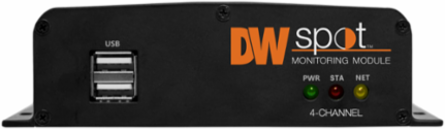

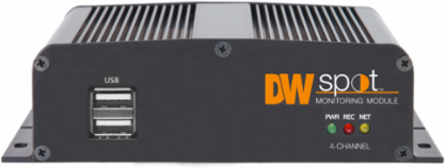

Digital Watchdog DW-HDSPOTMOD 4-Channel HD Camera Monitoring Module, 4K Resolution, Up to 120fps
- MPN: DW-HDSPOTMOD
- UPC: 813379016875
- PPN: DWD-DW-HDSPOTMOD
CAD
$795.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The 4-channel DW® Spot monitoring module from Digital Watchdog is a robust solution designed for efficient video surveillance, capable of live monitoring up to four cameras simultaneously. With support for 4K resolution and a maximum throughput of 80 Mbps, this module ensures high-quality video feeds from a variety of sources, including ONVIF conformant IP cameras and Universal HD over Coax® DVRs. Its user-friendly features, such as drag-and-drop camera selection and remote configuration via the Internet, make it an ideal choice for both professional and personal security setups. Additionally, the compact design and included USB mouse facilitate easy installation and operation, while the 5-year warranty provides peace of mind for long-term use.
Features
- Automatic network search and device registration
- Identifies an unlimited number of ONVIF conformant IP cameras, Universal HD over Coax® VMAX® A1 and VMAX A1 Plus™ DVRs or VMAX® IP Plus™ NVRs
- Support for up to 16 HD-Analog, HD-TVI, HD-CVI and all analog signals to 960H, up to 4K resolution

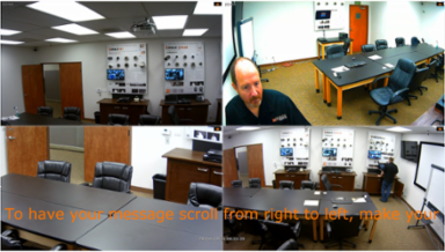

- Live monitoring of up to 4 cameras, single and quad-camera view and camera sequencing
- Up to 120fps display
- Drag and drop camera selection from DVRs and NVRs
- Remote configuration via the Internet
- Supports up to 4K resolution cameras, max. 80 Mbps throughout

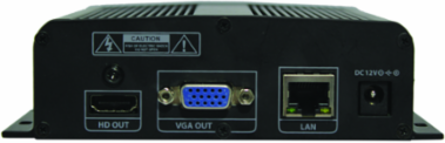

- 4K (3840 x 2160) true HD and VGA video outputs
- USB mouse included
- Velcro for easy mounting to the back of a monitor
- NDAA/TAA compliant
- 5 year warranty
Documentation & Downloads
Specifications
OPERATIONAL
- Operating system
- Embedded Linux®
- Protocol
- ONVIF
- Max. throughput
- 80 Mbps
- Video – in
- IP cameras (up to 4K, 3840 x 2160 resolution), Universal HD over Coax® VMAX® A1™ and VMAX A1 Plus™;DVRs or VMAX® IP Plus™ NVRs
- Resolution
- True HD - 3840x2160, 1920x1080, 1280x720, 1024x768, VGA - 1920x1080, 1280x720, 1024x768
- Protocols
- TCP/IP (static, DHCP), DDNS and UPnP
- System recovery after power failure
- Auto-reboot and log file system
Input4 channels
SpeedUp to 120fps
Screen modeSingle channel, quad view mode, sequence
MonitorTrue HD and/or VGA
LAN1x 10/100/1000 Base-TX Ethernet (RJ45)
Remote managementWeb (IE)
System operationUSB mouse
ENVIROMENTAL
- Power
- DC12V, 1A
- Operating humidity
- 20–90% RH (non–condensing)
- Warranty
- 5 year warranty
Operating temperature41°F ~ 104°F (5°C ~ 40°C)
Dimensions5.47" x 4.84" x 1.25" Inch (139 x 123 x 32 mm)
