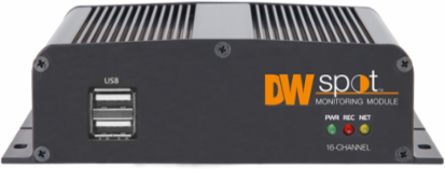

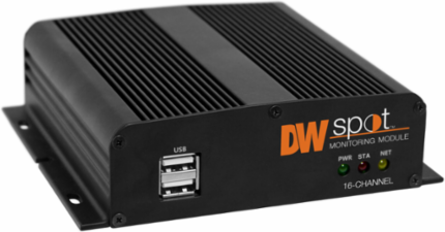

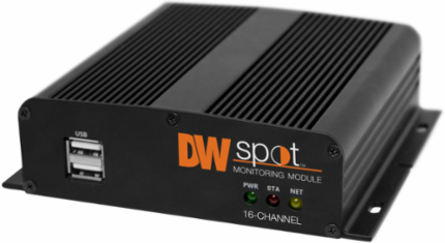

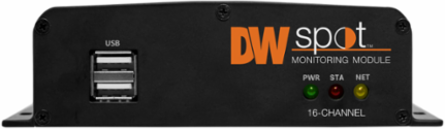

Digital Watchdog DW-HDSPOTMOD16 16-Channel HD Spot Monitoring Module, 4K Resolution Output
- MPN: DW-HDSPOTMOD16
- UPC: 813379011559
- PPN: DWD-DW-HDSPOTMOD16
CAD
$923.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Experience the advanced capabilities of the 16-channel Spot monitoring module from Digital Watchdog, designed to provide seamless integration and high-performance video management. With support for up to 4K resolution and a maximum throughput of 80 Mbps, this module allows for live monitoring of up to 16 cameras, ensuring that every detail is captured in stunning clarity. Its user-friendly interface features drag-and-drop camera selection and remote configuration, making it easy to customize your surveillance setup. Built with reliability in mind, the module operates within a wide temperature range and comes with a five-year warranty, making it a robust choice for any security system. Whether you are using HD-Analog, HD-TVI, or IP cameras, this monitoring module adapts to your needs, delivering true HD video outputs and efficient performance.
Features
- Automatic network search and device registration
- Identifies an unlimited number of ONVIF conformant IP cameras, Universal HD over Coax® VMAX® A1 and VMAX A1 Plus™ DVRs or VMAX® IP Plus™ NVRs
- Support for up to 16 HD-Analog, HD-TVI, HD-CVI and all analog signals to 960H, up to 4K resolution

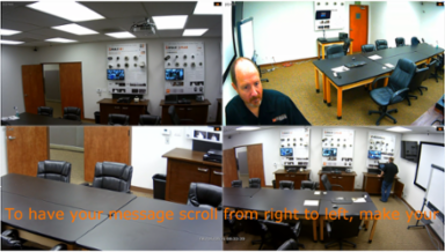

- Live monitoring of up to 16 cameras view, single, quad, nine and 16-channel split and camera sequencing
- Up to 480fps display
- Drag and drop camera selection from DVRs and NVRs
- Remote configuration via the Internet
- Supports up to 4K resolution cameras, max. 80 Mbps throughout

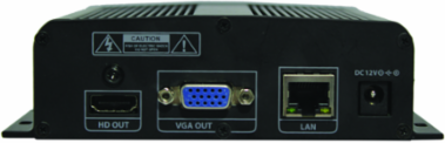

- 4K (3840 x 2160) true HD and VGA video outputs
- USB mouse included
- Velcro for easy mounting to the back of a monitor
- NDAA/TAA compliant
- 5 year warranty
Documentation & Downloads
Specifications
OPERATIONAL
- Operating system
- Embedded Linux®
- Protocol
- ONVIF
- Max. throughput
- 80 Mbps
- Video – in
- IP cameras (up to 4K, 3840 x 2160 resolution), Universal HD over Coax® VMAX® A1™ and VMAX A1 Plus DVRs™;or VMAX® IP Plus™ NVRs
- LAN
- 1x 10/100/1000 Base-TX Ethernet (RJ45)
- Remote management
- Web (IE)
- System operation
- USB mouse
Input16 channels
SpeedUp to 480fps
Screen mode1,4,9 and 16-channel view mode, sequence
MonitorTrue HD and/or VGA
ProtocolsTCP/IP (static, DHCP), DDNS and UPnP
System recovery after power failureAuto-reboot and log file system
ENVIROMENTAL
- Power
- DC12V, a!
- Operating humidity
- 20–90% RH (non–condensing)
- Warranty
- 5 year warranty
Operating temperature41°F ~ 104°F (5°C ~ 40°C)
Dimensions5.47" x 4.84" x 1.25" Inch (139 x 123 x 32 mm)
