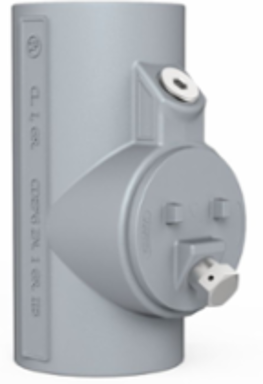

Killark EYD-0M Drain Seal Fitting, Iron, 4 Inch, Female/Female, NPT Threads, Duraloy Iron Material
- MPN: EYD-0M
- UPC: 783936111728
- PPN: HBL-EYD-0M
- UNSPSC: 39131708
CAD
$2853.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Killark’s EYD drain sealing fittings offers options for installing in vertical positions for harsh hazardous locations where there is a probability that liquid or other condensed vapor may be trapped within enclosures or in the conduit raceway system. EYD series can make any sealing needs significant by offering a minimized turn radius for maximized installations. Options are available in copper-free aluminum and Duraloy iron with superior electro-statically applied powder coating for the best corrosive resistance.
Features
- Threaded for Rigid Conduit or IMC
- Tapered threads (NPT)
- Simplified installation
- Internal drainage path provides a visual means to ensure that the compound chamber is properly filled
- Temporary plastic sleeve protects thread for drain/breather from contamination when pouring compound
- Unique design enables installation of drain/breather right after compound is poured – no waiting
- Provides continuous water drain path while allowing conduit run to breathe, in compliance with the NEC
- Includes Drain Breather Fitting KDB-1
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Application
- To minimize the passage of gases and vapors from one electrical installation to another through the conduit system while offering a degree of ventilation and draining of condensation. To confine any explosions from sealed enclosures and prevent pressure pilling between conduit systems.
- Finish
- Powder Epoxy Paint
- Hub Size
- 4"
- Special Features
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
- Width
- 5.125 in
- Engineering Drawing 1 Display Text
- Killark EYD-0
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SEAL FTG FE 4" DRAIN
- Harmonization Code
- 7307193060
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 20
- Material
- Zinc Plated Iron
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936111728
- NAICS Code
- 3359323114
Dimensions5 in x 5.125 in x 9.78 in
Ratings3R
ColorGray
Height9.78 in
Length5 in
TypeSealing Fitting
Weight16.37 lb.
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesEYD Series
BOX SIZE(in)
Master Pack DescriptionEach
