Hubbell Premise Wiring

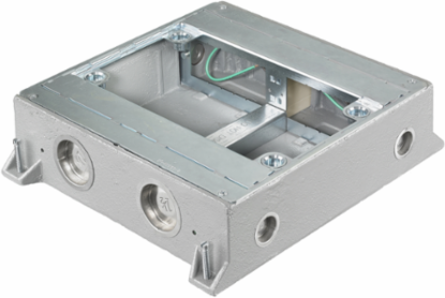

Hubbell Premise Wiring CFB4G30CI 4-Gang Recessed Floor Box with 3.25 Inch Minimum Depth, Cast Iron

4-Gang Recessed Floor Box with 3.25 Inch Minimum Depth, Cast Iron
4-Gang Recessed Floor Box with 3.25 Inch Minimum Depth, Cast Iron
  • MPN: CFB4G30CI
  • UPC: 783585447261
  • PPN: HBL-CFB4G30CI
  • UNSPSC: 39121307

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$615.57/ EA

Description

SystemOne ETERNAL™ Series Concrete Floorboxes, Cast Iron Box, Recessed, 4-Gang CFB Series Box for Rectangular Covers, 3.25" Minimum Depth of Pour, Corrosion Resistant Paint

Features

  • Corrosion-Resistant Cast Iron Recessed 4-Gang Rectangular Cover Floorbox
  • For Use In Concrete Floors
  • 3.25" Minimum Depth of Pour

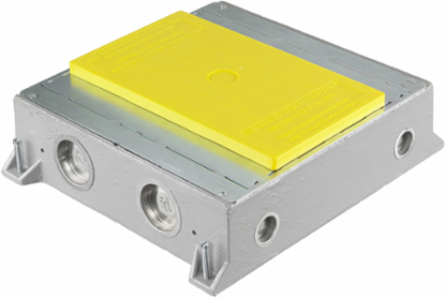

  • Box Includes Installation Cover & 1/2" Prepour Cap
  • Each Gang Includes (1) 6" Solid #12 AWG Conductor Grounding Pigtail
  • Cast Iron Box with Corrosion Resistant Paint; Threaded Hubs

Specifications

Material
Cast Iron
Mounting Type
Field Installed
Number of Gang(s)
4-Gang
Length
13.19 in.
Height
3.20 in.
Threaded Hubs
(4) 1½" NPT
Flush Prepour Cover
16 gauge galvanized steel
Device Chamber Grounding
6" Long #12 AWG Solid Copper Wire
Wiring Chamber Volume
(4) 30.0 in³
Mounting Method
Screw Mount Device Mounting Plates
Application
For Use on Concrete Floors
Country of Origin
US
FinishGray corrosion resistant epoxy paint
TypeRecessed
Minimum Depth of Pour3.25 in.
Width11.44 in.
Cover ShapeRectangle
Top Mounting Plates16 gauge galvanized steel
1/2" Prepour CoverYellow Plastic
Wiring Chamber Depth2.71 in.
CompliancecULus Listed, UL 514A Listed
Cable EntryThrough Cover
ColorMetallic/Green Epoxy Paint
