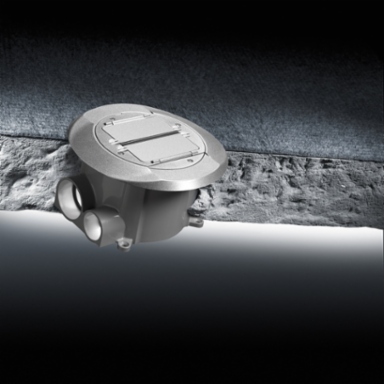

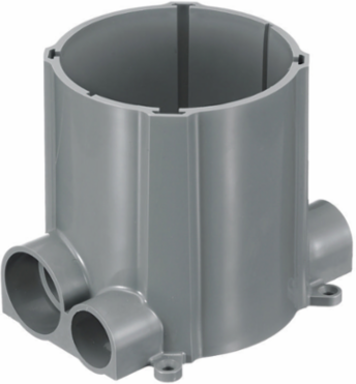

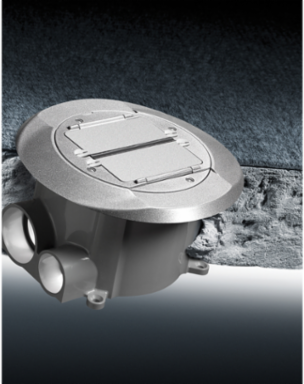

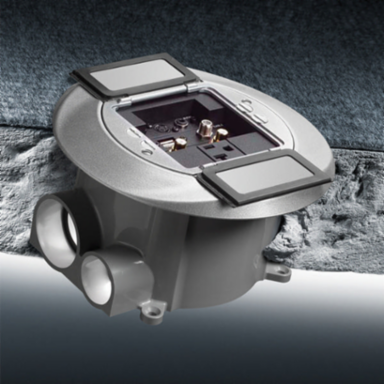

Hubbell Premise Wiring S1PFB Round PVC Floor Box, 5.58 x 7.08 x 6 Inch, In-Floor Concrete Delivery System
- MPN: S1PFB
- UPC: 783585371016
- PPN: HBL-S1PFB
- UNSPSC: 39121307
CAD
$133.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
In-Floor Delivery Systems, SystemOne, Round Flush Floorboxes, PVC, 3.00" Minimum Dept of Pour
Features
- Easy to install, in-floor delivery system for open plan spaces
- Concrete cover, conduit reducers and conduit hub plugs included
- Universal Cover eliminate the need for an additional adapter collar
- PVC Construction; PVC Conduit Reducers and Closure Plugs Incuded
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Cover Shape
- Round
- Industry Standard(s)
- cULus;UL514
- Service
- Single; Multi
- Cable Entry
- From Top
- Height
- 6 in
- Length
- 5.58 in
- Special Features
- PVC Construction; PVC Conduit Reducers and Closure Plugs Incuded
- Type
- Round Box
- Description - Invoice
- F-BOX PLASTIC,RND.,SYSTEM 1
- Harmonization Code
- 3925900000
- MSDS Flag
- No
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585371015
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Application - For Use OnConcrete
Dimensions5.58 in x 7.08 in x 6 in
Mounting MethodCast Into Concrete
ApplicationFor Use in Concrete Floors
ColorGray
Knockouts1) 1 in and 1) 1 1/2 in, Threaded NPT Hub
Size5.58 in x 7.08 in x 6 in
StandardcULus;UL514
Width7.08 in
Freight Class Code06168002
Image Actual Or RepresentativeA
ConstructionMolded
SeriesFlush - S1 Series
BOX SIZE7.000x7.400x6.900 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585371016
Case Weight2.750 lb.
Lowest Level UOMEach
Pallet Height42.000 in
Pallet Weight610.500 lb.
NAICS Code3359326106
Certifications
- EU RoHS Indicator
- No
