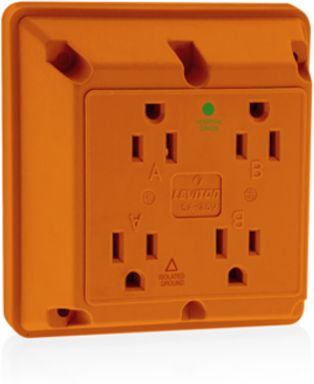

Leviton 1254-IG 15 Amp 4-in-1 Isolated Ground Quadruplex Receptacle, Hospital Grade, 125 Volt
- MPN: 1254-IG
- UPC: 078477830529
- PPN: LEV-1254-IG
CAD
$59.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4-in-1 Isolated Ground Quadruplex Receptacle Outlet, Heavy-Duty Hospital Grade, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - Orange
Features
- Code Compliant - Allows you to increase the number of receptacles in your facility without having to pull new wires
- Durable - Impact and chemical resistant nylon cover and base
- Easy Installation - Termination anchor holes for easy conductor wiring
- Reliable - 10-Year Limited Warranty
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-1 WD-6 |
| UL498 | File E13399 |
| Warranty | 10-Year Limited |
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| NOM | 057 |
| UL498HG | File E13399 |
Material Specifications
| Body Material | Nylon |
|---|---|
| Face Material | Nylon |
| Grounding Screw | Plated Steel |
| Mounting Screws | Zinc-Plated Steel 8-32 |
| Terminal Screws | Plated Brass |
| Color | Orange |
|---|---|
| Ground Contacts | Phosphor Bronze |
| Line Contacts | Phosphor Bronze |
| Strap Material | Galvanized Steel |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal Accom. | 14-12 AWG |
| Termination | Side Wire |
| Screw Terminal Torque | 10-12 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Torque Range | 12-14 inch pounds |
Product Features
| Brand | 4-in-1 |
|---|---|
| Grade | Hospital Grade |
| Device Type | Quadruplex Receptacle Outlet |
|---|
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Isolated Ground |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Wire | 3 |
AC Horsepower Ratings
| At Rated Voltage | 1/2 HP |
|---|
