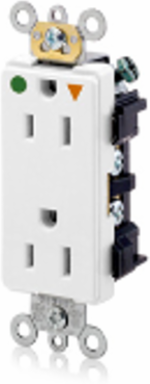

Leviton 16262-IGW Hospital Grade Duplex Receptacle, 15 Amp, 125 Volt, Isolated Ground, White

MPN: 16262-IGW
PPN: LEV-16262-IGW

$26.79

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

All Leviton Hospital Grade Receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.

Specifications

Standards and Certifications

ANSI	C-73
NEMA	WD-6
UL498HG	File E13399

CSA C22.2 No. 42	File 152105
NOM	057
Warranty	10-Year Limited

Material Specifications

Body Material	Nylon
Color	White
Grounding Screw	Brass 8-32
Terminal Screws	Brass 10-32

Clamp Nuts	Zinc-Plated Steel
Face Material	Nylon
Strap Material	Steel
Yoke	Zinc-Plated Steel

Mechanical Specifications

Product ID	Ratings are permanently marked on device
Terminal ID	Brass-Hot, Green-Ground, Silver-Neutral

Terminal Accom.	14-10 AWG
Termination	Back & Side

Product Features

Color	White
NEMA	5-15R

Grade	Hospital

Environmental Specifications

Flammability	Rated V-2 per UL94

Operating Temperature	-40C-60C

Electrical Specifications

Amperage	15 Amp
Dielectric Voltage	Withstands 2000V per UL498
Pole	2
Voltage	125 Volt

Current Limiting	Full Rated Current
Grounding	Isolated Ground
Temperature Rise	Max 30C after 250 cycles OL at 200 percent rated current
Wire	3

AC Horsepower Ratings

At Rated Voltage	1/2 HP

Hospital Grade Duplex Receptacle, 15 Amp, 125 Volt, Isolated Ground, White
