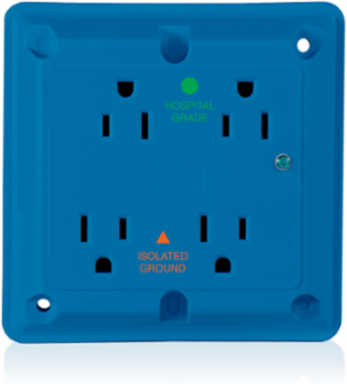

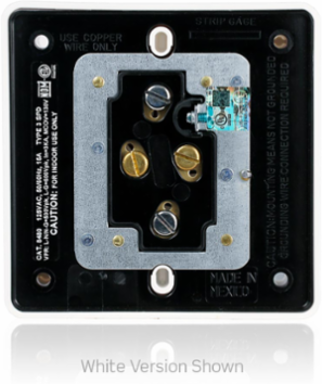

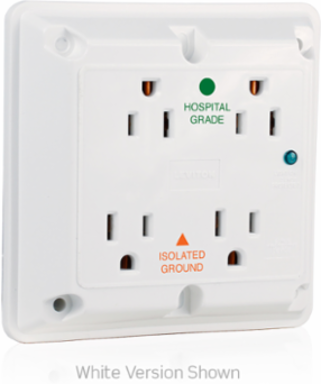

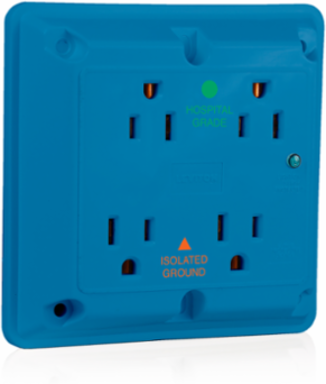

Leviton 8480-IGB 15 Amp Surge Protected Quadruplex Receptacle, 125 Volt, Hospital Grade, Blue
- MPN: 8480-IGB
- UPC: 078477843659
- PPN: LEV-8480-IGB
CAD
$187.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4-in-1 Surge Protective Isolated Ground Quadruplex Receptacle Outlet, Heavy-Duty Hospital Grade, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - Blue
Features
- Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are listed to UL 1449 3rd Edition Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
- Code Compliant - Allows you to increase the number of receptacles in your facility without having to pull new wires
- Durable - Impact and chemical resistant nylon cover and base
- Easy Installation - Termination anchor holes for easy conductor wiring
- Reliable - 5-Year Limited Warranty
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL Fed Spec WC-596 | File E13399 |
| Agency Certifications | UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3 |
|---|---|
| NOM | 057 |
| UL498HG | File E13399 |
Performance Data
| Diagnostics | Indicator Light |
|---|---|
| MCOV | 150V rms |
| Noise Rejection | -30dB at 500kHz-30MHz |
| Short Circuit Current Rating | 5kA |
| VPR | L-N:500V, L-G:600V, N-G:500V |
| Joules Rating | 720 |
|---|---|
| Max Surge Current | L-N: 18kA, L-G: 9kA, N-G: 9kA |
| Nominal Discharge Current Rating | 3kA |
| UL1449 Impulse 6kV/500A L-N | 330V |
Material Specifications
| Body Material | Nylon |
|---|---|
| Face Material | Nylon |
| Grounding Screw | Brass-Plated Steel |
| Mounting Screws | Zinc-Plated Steel 8-32 |
| Terminal Screws | Brass-Plated Steel |
| Clamp Nuts | Zinc-Plated Steel |
|---|---|
| Ground Clips | Brass-Plated Steel |
| Line Contacts | Brass Triple-Wipe |
| Shutter Mechanism | Delrin® Acetal |
| Yoke | Zinc-Plated Steel |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal Accom. | 14-10 AWG |
| Termination | Back or Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Torque Range | 14-16 inch pounds |
Product Features
| Brand | 4-in-1 |
|---|---|
| Device Type | Quadruplex Receptacle |
| Grade | Heavy-Duty Hospital Grade |
| Color | Blue |
|---|---|
| Function | Surge Protective Isolated Ground |
Warranty
| Warranty | 5-Year Limited |
|---|
Environmental Specifications
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Isolated Ground |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
