Leviton 5480-IG Surge Protected Quadruplex Receptacle, 15 Amp, 125 Volt, Industrial Grade, Orange
- MPN: 5480-IG
- UPC: 078477851364
- PPN: LEV-5480-IG
CAD
$161.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

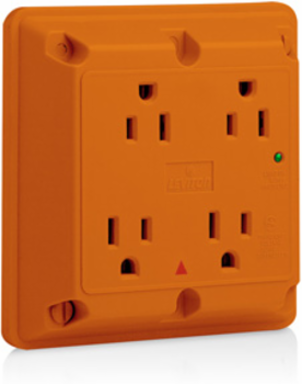

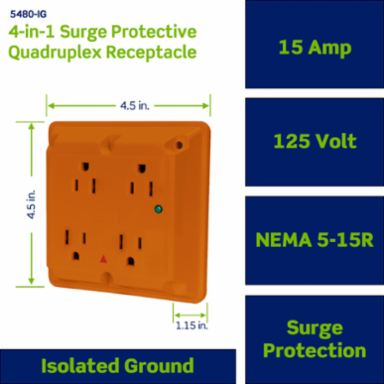

4-in-1 Surge Protective Isolated Ground Quadruplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - Orange
Features

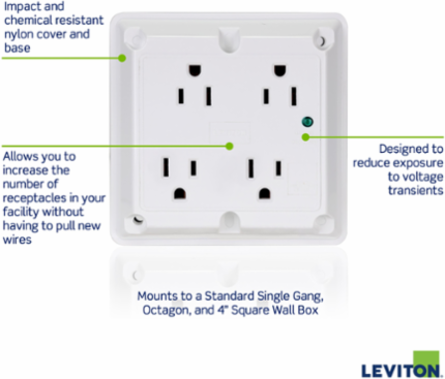

- Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
- Code Compliant - Allows you to increase the number of receptacles in your facility without having to pull new wires
- Durable - Impact and chemical resistant nylon cover and base
- Easy Installation - Termination anchor holes for easy conductor wiring
- Reliable - 5-Year Limited Warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13399
Agency CertificationsUL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
NOM057
Performance Data
- Diagnostics
- Indicator Light
- MCOV
- 150V rms
- Noise Rejection
- -30dB at 500kHz-300MHz
- Short Circuit Current Rating
- 5kA
- VPR
- L-N:500V, L-G:600V, N-G:500V
Joules Rating720
Maximum Surge Current, Per Mode (Per Phase)27kA (L-N:18kA, L-G:9kA)
Nominal Discharge Current Rating3kA
UL1449 Impulse 6kV/500A L-N330V
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Grounding Screw
- Brass-Plated Steel
- Shutter Mechanism
- Delrin® Acetal
- Yoke
- Zinc-Plated Steel
Clamp NutsZinc-Plated Steel
Ground ClipsBrass-Plated Steel
Line ContactsBrass Triple-Wipe
Terminal ScrewsBrass-Plated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Torque Range
- 14-16 inch pounds
Terminal Accom.14-10 AWG
TerminationBack or Side Wire
Product Features
- Brand
- 4-in-1
- Device Type
- Quadruplex Receptacle
- Grade
- Commercial Specification Grade
ColorOrange

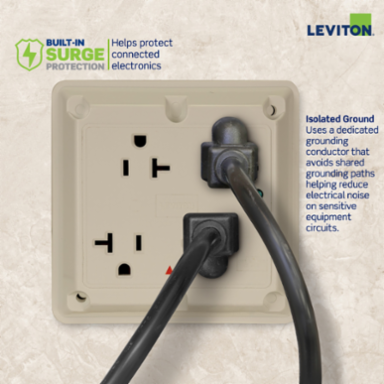

FunctionSurge Protective Isolated Ground
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingIsolated Ground
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
