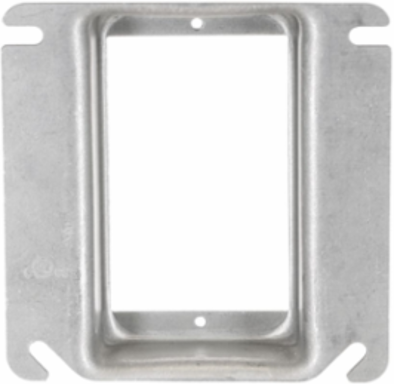

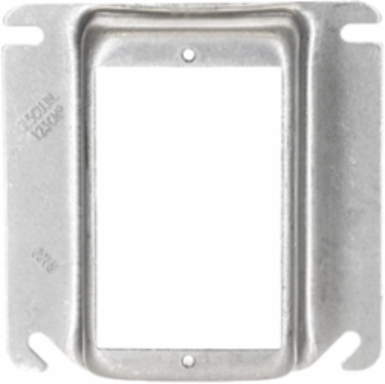

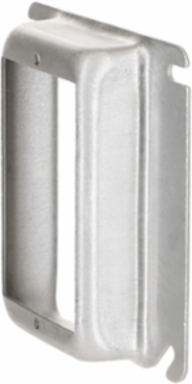

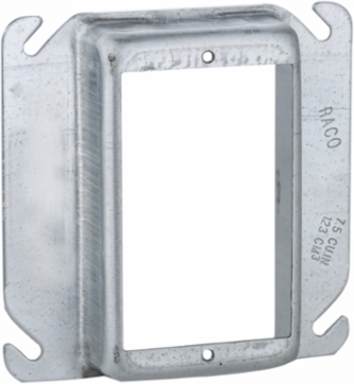

Raco 774 4 Inch Square Mud Ring Cover, 1-Device, 1 Inch Raised, 10.3 cu. in. Capacity
- MPN: 774
- UPC: 050169007747
- PPN: HBL-774
- UNSPSC: 39121304
CAD
$5.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4 in. Square Cover, 1-Device, 1 in. Raised
Features
- Angled mounting slots compensate up to 12 degrees for box misalignment
- Includes required hardware for mounting the receptacle
- Accepts single 2.141 in. diameter receptacle
- Installation instructions on polybag
- 10.3 cu. in. capacity
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 1 in |
| Height | 4 in |
| Size | 4 in |
| Shape | Square |
| Type | Mud Ring |
| Width | 4 in |
| Class Code | D01 |
| Freight Class Code | 06202000 |
| Image Actual Or Representative | A |
| Order Multiple | 25 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | Buy American Act Compliant (All status valid till December 2026) |
| Paintable/Stainable | No |
| Number of Gang(s) | 1-Gang |
| Proposition 65 Warning Required | No |
| BOX SIZE | 8.75x8.75x6.563 (in) |
| Carton - Number of Sub Packs | 25 |
| Carton - SCC-14 Next Lower Level Sub Pack | 50169007747 |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70050169007746 |
| Pallet - Pack Description | Pallet |
| Pallet - Total Units | 3750 EA |
| Pallet Length | 48.000 in |
| Pallet Width | 42.000 in |
| ChannelSightWidgetId | 705 |
|---|---|
| Description - Slang | Square Cover Raised |
| Product Type | Cover |
| Cubic Capacity | 7.5 cu.in |
| Standard | cULus Listed |
| Weight | 0.321 lb. |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 4SQ MUDRG 1)DEV 1"RSD |
| Harmonization Code | 7326908688 |
| MSDS Flag | Yes |
| Returnable Indicator | Yes |
| Sub Class Code | D010D0105 |
| Drawn or Welded | Drawn |
| Material | Steel |
| Raised Height | 1 in |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 8.4 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 25 EA |
| Lowest Level UOM | Each |
| Pallet - Number of Sub Packs | 150 |
| Pallet - SCC-14 Next Lower Level Sub Pack | 50050169007742 |
| Pallet Height | 43.753 in |
| Pallet Weight | 1300.350 lb. |
| NAICS Code | 3359326102 |
Certifications
| Buy American Compliant | Yes |
|---|
| Certified Listed | cULus Listed |
|---|
