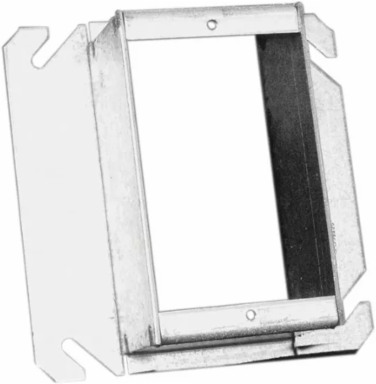

Hubbell 52C50112 4 in. Square Cover, Tile Cover 1-1/2 in., 10 Cu. In., with One Device (25-Pack)
- MPN: 52C50112
- UPC: 626463000359
- PPN: HBL-52C50112
- UNSPSC: 39121704
CAD
$9.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
4 in. Square Cover, Tile Cover 1-1/2 in., 10 Cu. In., with One Device (25-Pack).
Features
- This Hubbell TradeSelect cover is engineered explicitly for 4-inch square boxes, delivering a precise match for commercial or residential rough-ins. It features a single-gang opening designed to mount a standard toggle switch, duplex receptacle, or GFCI device, simplifying your component sourcing by working across multiple applications.
- With a prominent 1-1/2-inch raised profile, this tile wall cover provides the extra depth required to sit perfectly flush against heavy tile, marble, or double-layered drywall finishes. It adds 11.3 cubic inches of code-compliant internal wire capacity, giving you the critical room needed to manage conductor fills safely and avoid pinched wires during device installation.
- The integrated angled mounting slots allow for up to 12 degrees of structural rotation, allowing you to quickly compensate for boxes that were installed unevenly or shifted during the concrete pour. This adjustable design ensures your final wall plate finishes straight and level without requiring time-consuming wall tear-outs.
- Manufactured from heavy-duty, pre-coated zinc galvanized steel, this welded welded-frame cover delivers rugged structural support that prevents warping or collapsing under pressure. It is equipped with specialized self-tapping screws that virtually eliminate thread stripping, ensuring a secure, lasting metal-to-metal bond even in demanding commercial environments.
Documentation & Downloads
Specifications
Additional
- Size
- 4 in x 4 in x 1.5 in
- Weight
- 0.39 lb
- Number of Gang(s)
- 1-Gang
Cubic Capacity10 cu in
MaterialSteel
CompliancecULus Listed, CSA Certified
