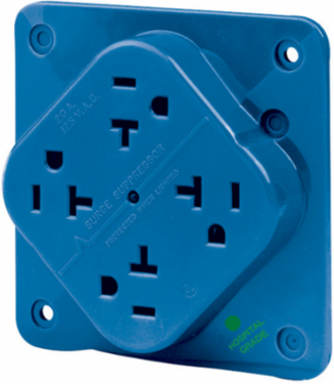

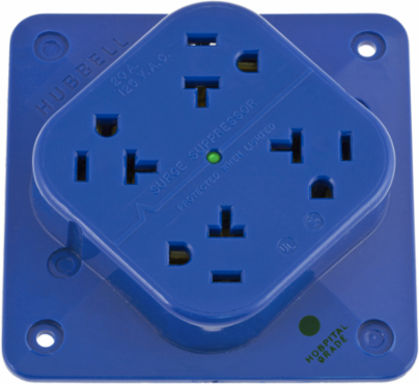

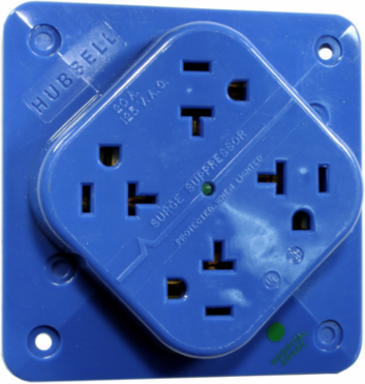

Hubbell Wiring Device-Kellems HBL420HS 4-PLEX Hospital Grade Surge Suppression Receptacle 20A 125V 5-20R Blue
- MPN: HBL420HS
- UPC: 783585017891
- PPN: HBL-HBL420HS
- UNSPSC: 39121610
CAD
$252.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4-PLEX, Hospital Grade Surge Suppression Receptacle, 20A 125V, 5-20R, with Surge, Blue
Features
- Mounts directly to 4-inch square box
- Heavy duty, impact resistant housing
- Removable knockouts for mounting
- Heavy duty, triple wipe, brass power and ground contacts
- Isolated Ground
Specifications
Key Specifications
| Country of Origin | Puerto Rico |
|---|---|
| Current / Amperage Rating | 20 A |
| Industry Standard(s) | Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186 |
| Amperage Rating | 20 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Operating Temperature | 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C) |
| Phase | Single Phase |
| Special Features | Isolated Ground |
| Type | 4-Plex |
| Voltage Rating Description | 125 V |
| Engineering Drawing 1 Display Text | HBL420HS AutoCAD Drawing |
| General Literature Asset 2 Display Text | SpikeShield® Surge Protective Devices |
| Display Size | Standard |
| Class Code | A44 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 420HS |
| Material - Mounting Hardware | Mounting Screws |
| Indicator(s) Type | LED Only |
| Series | Hospital Grade |
| BOX SIZE | 5.125x6.245x6.245 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585017891 |
| Case - Total Units | 30 EA |
| Each - Pack Description | Each |
| NAICS Code | 335999E509 |
| Color | Blue |
|---|---|
| Width | 4.420 in |
| Performance | Electrical - Frequency - 60Hz;Electrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs);Electrical - Voltage - 20V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - -40°F to 140°F (-40°C to 60°C) |
| Application | 4-Plex with LED |
| Frequency Rating | 60 Hz |
| Outlet | Straight Blade |
| Response Time | 5 |
| Standard | Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186 |
| Voltage Rating | 125 V |
| Weight | 0.35 lb. |
| General Literature Asset 1 Display Text | Duct Products Guide |
| Connectivity | Terminal Screws |
| Nema Rating | 5-20R |
| Description - Invoice | 4-PLEX HG SPD RCPT, 20A 125V, 5-20R, BL |
| Harmonization Code | 8536308000 |
| MSDS Flag | No |
| Sub Class Code | A44A420 |
| Current Rating | 20 A |
| Material | Composite |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.500 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| Case Weight | 10.500 lb. |
| Lowest Level UOM | Each |
