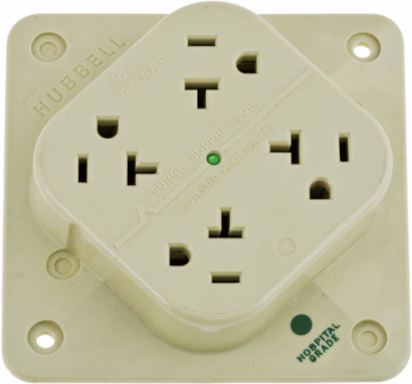

Hubbell Wiring Device-Kellems HBL420HIS 4-PLEX Hospital Grade Surge Suppression Receptacle 20A 125V 5-20R
Hubbell Wiring Device-Kellems HBL420HIS 4-PLEX Hospital Grade Surge Suppression Receptacle 20A 125V 5-20R
- MPN: HBL420HIS
- UPC: 783585017907
- PPN: HBL-HBL420HIS
- UNSPSC: 39121610
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$238.09/ EA
Description
4-PLEX, Hospital Grade Surge Suppression Receptacle, 20A 125V, 5-20R, with Surge, Ivory
Features
- Mounts directly to 4-inch square box
- Heavy duty, impact resistant housing
- Removable knockouts for mounting
- Heavy duty, triple wipe, brass power and ground contacts
- Isolated Ground
Specifications
Specifications
- Country of Origin
- United States
- Current / Amperage Rating
- 20 A
- Industry Standard(s)
- Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186
- Amperage Rating
- 20 A
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Phase
- Single Phase
- Special Features
- Isolated Ground
- Type
- 4-Plex
- Voltage Rating Description
- 125 V
- General Literature Asset 1 Display Text
- Duct Products Guide
- Connectivity
- Terminal Screws
- Nema Rating
- 5-20R
- Description - Invoice
- 4-PLEX HG SPD RCPT, 20A 125V, 5-20R, IV
- Harmonization Code
- 8536308000
- MSDS Flag
- No
- Sub Class Code
- A44A420
- Current Rating
- 20 A
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Case Weight
- 10.500 lb.
- Lowest Level UOM
- Each
ColorIvory
Width4.420 in
PerformanceElectrical - Frequency - 60Hz;Electrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs);Electrical - Voltage - 20V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - -40°F to 140°F (-40°C to 60°C)
Application4-Plex with LED
Frequency Rating60 Hz
OutletStraight Blade
Response Time5
StandardCertified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186
Voltage Rating125 V
Engineering Drawing 1 Display TextHBL420HIS AutoCAD Drawing
General Literature Asset 2 Display TextSpikeShield® Surge Protective Devices
Display SizeStandard
Class CodeA44
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number420HIS
Material - Mounting HardwareMounting Screws
Indicator(s) TypeLED Only
SeriesHospital Grade
BOX SIZE5.125x6.245x6.245 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585017907
Case - Total Units30 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
