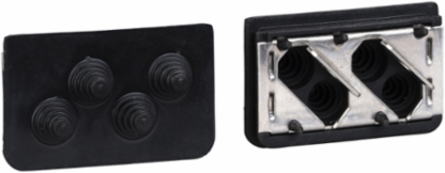

Schneider Electric VW3L10100N10 Protective Cable Sleeves Set of 10 for Integrated Drives, 3-9 mm Diameter
- MPN: VW3L10100N10
- PPN: SCH-VW3L10100N10
CAD
$207.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This IP54 plate is proposed as an option of Lexium ILA,ILE, ILS integrated servo drives. It consists in a plate with cable entries for for 4 cables diameter 3mm to 9mm. 2 plates are required per integrated drive. They provide the seal, the mechanical catch and connection of the shielding. It is sold in lots of 10.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Stock Policy | 2 |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Cable Entry | 5 protective cable sleeves on each insert |
| Kit Composition | 2 inserts with cable entries |
| Product Or Component Type | cable entry for signals and power supply cable |
| Range Of Product | Lexium integrated drive |
| Sustainable Packaging | No |
| Accessory / Separate Part Destination | for integrated drives |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8544429090 |
| Local Publishable Date | 2026-01-12 |
|---|---|
| Stocking Flag | Y |
| Serviceability | No |
| Weee Scope | Out |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Cable Outer Diameter | 3-9 mm |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 10 |
| Returnability | No |
| Accessory / Separate Part Category | connection accessories |
| Accessory / Separate Part Type | connection accessories |
| Package Weight(Lbs) | 214.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | cable entry for signals and power supply cable |
|---|
| Range Of Product | Lexium integrated drive |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|
| ETIM 9 | EC002025 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
