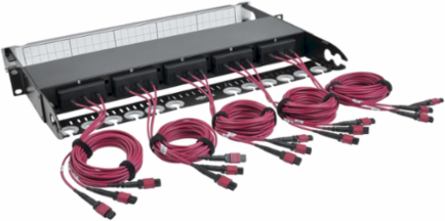

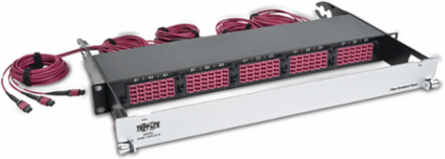

Tripp Lite N48K-15M8L60-B 1U Fiber Breakout Patch Panel, 15 MTP to 60 LC Duplex OM4, Multimode
- MPN: N48K-15M8L60-B
- UPC: 037332200846
- PPN: TRP-N48K-15M8L60-B
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1U Fiber Breakout Patch Panel, 15 MTP to 60 LC Duplex OM4, Multimode
Features
- Total of 15 12-fiber MTP/MPO switch ports and 60 LC ports
- Base8 wiring uses all LC ports—no dead ports as in Base12
- Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections
- Hardwired cassettes for 30% improvement in insertion loss

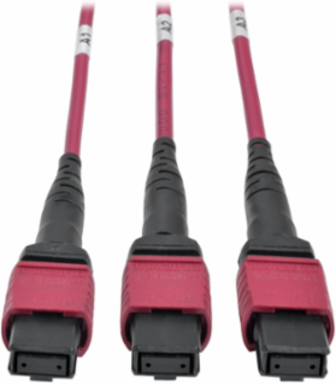

- Easily identifiable color-coded magenta OM4 cables
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- Integrates Equipment with 10Gb and 40Gb Speeds, or 25Gb and 100Gb, to Meet Current Connectivity Needs
- 5 Breakout Cassettes
- Base8 Wiring

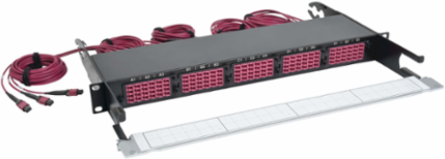

- Fold-Down Front Panel

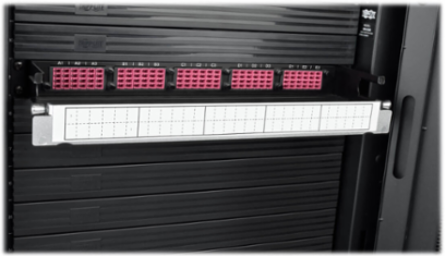

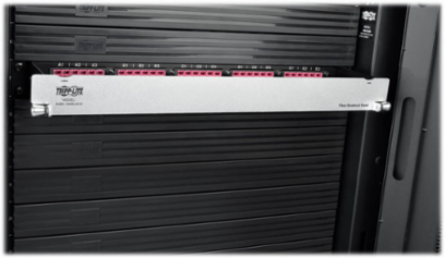

- Mounts in 1U of EIA-Standard 19 in. Rack
Specifications
Additional
| Technology | MTP/MPO; Multimode |
|---|---|
| Side A Connector | MTP Female |
| Product Warranty Period | Lifetime limited warranty |
| Shipping Weight | 8.10 lbs |
| Optical Mode / Fiber Type | OM4 Multimode |
|---|---|
| Side B Connector | LC Duplex Female |
| Shipping Dimensions (HxWxD) | 3.80 x 21.30 x 18.80 in |
| Color | Black |
