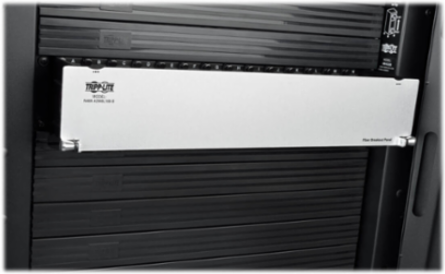

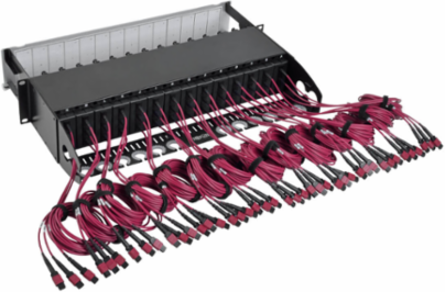

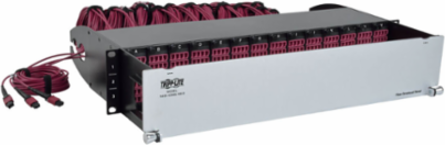

Tripp Lite N48K-42M8L168-B 40/100Gb Fiber Breakout Patch Panel, 42 MTP to 168 LC, OM4 Multimode
- MPN: N48K-42M8L168-B
- UPC: 037332200839
- PPN: TRP-N48K-42M8L168-B
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
40/100Gb Fiber Breakout Patch Panel, 42 MTP to 168 LC, OM4 Multimode
Features
- Total of 42 12-fiber MTP/MPO switch ports and 168 LC ports
- Base8 wiring uses all LC ports—no dead ports as in Base12
- Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 to SFP+ 10GBASE-SR and QSFP28 100GBASE-SR4 to SFP28 25GBASE-SR connections
- Hardwired cassettes for 30% improvement in insertion loss

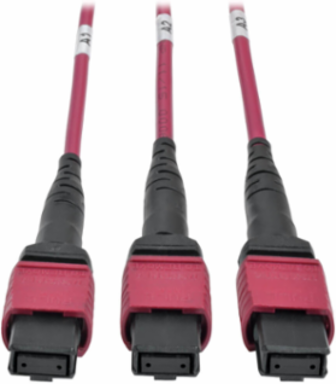

- Easily identifiable color-coded magenta OM4 cables
- This product is covered by a Lifetime Limited Warranty ( coverage details )

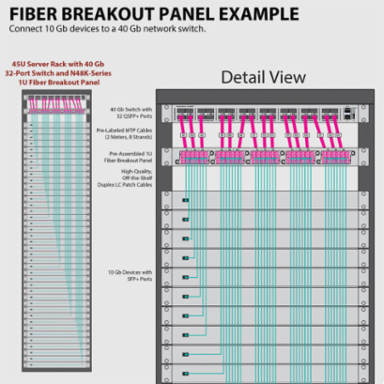

- Integrates Equipment with 10Gb and 40Gb Speeds, or 25Gb and 100Gb, to Meet Current Connectivity Needs

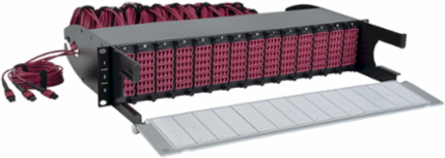

- 14 Breakout Cassettes
- Base8 Wiring

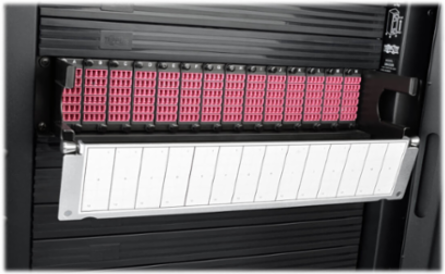

- Fold-Down Front Panel
- Mounts in 2U of EIA-Standard 19 in. Rack
Specifications
Additional
| Data Rate | 40/100 Gb |
|---|---|
| Optical Mode | OM4 50/125 m Multimode |
| Breakout Cassettes | 14 |
| MTP Cable Length | 2 m |
| Color Coding | Magenta OM4 |
| Link Attenuation Reduction | Up to 50% |
| Side A Connector | MTP (Female) |
| Material Color | Black |
| Certifications | RoHS |
| Port Count | 42 MTP, 168 LC Duplex |
|---|---|
| Chassis Height | 2U |
| LC Duplex Ports per Cassette | 12 |
| Wiring Type | Base8 |
| Insertion Loss Improvement | 30% |
| Rack Mount | Fits 2U EIA-Standard 19 in. |
| Side B Connector | LC Duplex (Female) |
| Technology | MTP/MPO; Multimode |
| Product Warranty | Lifetime limited warranty |
