Leviton 47612-42B 42 Inch Structured Media Extender Bracket, 2 Inch Depth, 18 Gauge Steel
Leviton 47612-42B 42 Inch Structured Media Extender Bracket, 2 Inch Depth, 18 Gauge Steel
- MPN: 47612-42B
- UPC: 078477168431
- PPN: LEV-47612-42B
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$240.96/ EA
Description

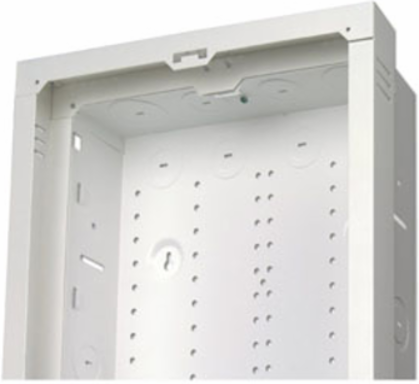

Leviton Extender Brackets provide an additional two inches of depth and enhanced ventilation within Leviton 28" and 42" Structured Media enclosures. The Extender Brackets, which are attached between the enclosure and the cover, form a frame assembled from four 2-inch-deep sheet-metal rails with louvers on each side. The greater depth allows for better cable management and for larger modules, such as audio amplifiers, to be mounted within the SMC enclosure
Features
- Adds two inches of depth to Leviton 28" and 42" Structured Media enclosures to accommodate larger modules and provide more room for better cable management
- Louvers in Extender Brackets enhance ventilation within Structured Media enclosures for added protection against heat build-up from installed modules
- Each Extender Bracket package for the 28" or 42" Structured Media enclosures includes four two-inch-deep sheet metal rails that attach together to create a frame extension between the Structured Media enclosure and cover
- Made of sturdy white powder-coated 18-gauge sheet metal
Specifications
Product Features
- Item
- 2 Inch Extender Brackets
- Warranty
- 2-Year Limited
SeriesSeries 420
Material Specifications
- Color
- White
- Gauge of Steel
- 18 Gauge
Enclosure MaterialSteel
Paint FinishPowder-Coated
Dimensional Data
- Depth
- 2 Inch
- Width
- 16.10 Inch
Height43.25 Inch
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
