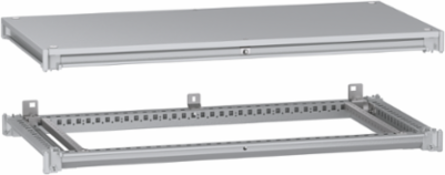

Schneider Electric NSYSFNC105 PanelSeT SFN Framework Kit for Electrical Enclosure 1000x500mm, Steel

MPN: NSYSFNC105
PPN: SCH-NSYSFNC105

$1028.57

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This framework kit from Schneider Electric offers a robust solution for housing electrical components within an enclosure. Made from high-quality steel, the NSYSFNC105 is specifically designed to support electrical installations, ensuring durability and stability in a variety of industrial environments. With dimensions of 1000x500mm, it provides ample space for organizing and protecting essential electrical equipment, making it an excellent choice for panel builders seeking reliable and efficient design solutions.

Documentation & Downloads

Specifications

Key Specifications

Height	4.33 in
Country of Origin	Brazil, Spain, France, United States

Width	39.37 in
Depth	500 mm

Physical Attributes

Color	Gray RAL 7035)

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 bottom frame, 1 roof, 1 top frame
Mounting Location	bottom of vertical uprights, top of vertical uprights
Carbon Footprint Of The End-of-life Phase [C1 To C4]	41 kg CO2 eq., 41.45205126
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	47 kg CO2 eq., 47.06922719
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2507020EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2306
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Fixing Mode	by screws - each corner of enclosure
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	Yes
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	97 kg CO2 eq.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %	97
Height Useful	110 mm
Width Real	1000 mm
Nbr. Of Units In Pkg.	1
Silicone-free	Yes
Warranty (In Months)	18
Customs Code	9403999045

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial

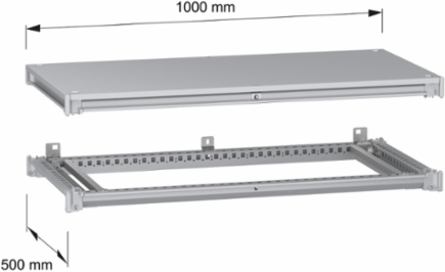

Enclosure Nominal Dimensions	- W: 1000 mm D: 500 mm, - W: 1000 mm D: 500 mm, - W: 1000 mm D: 500 mm, - W: 1000 mm D: 500 mm, - W: 1000 mm D: 500 mm, - W: 1000 mm D: 500 mm
Carbon Footprint Of The Distribution Phase [A4]	3.469998715, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	4.912686276, 5 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-05-01
Stocking Flag	N
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Material	steel
Product Or Component Type	framework kit
Range	PanelSeT
Software Version	v5.9.4
Sustainable Packaging	No
Pep Code	ENVPEP2301018EN
Pep Verification Date	2023-07-31
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal	110 mm
Width Nominal	1000 mm
Accessory / Separate Part Category	enclosure accessory
Package Weight(Lbs)	19.500 kg
Take-back	No
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]	1552.1418

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Silicon Free	Yes
Circularity Profile	ENVEOLI2507020EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2301018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	96.90396344
Environmental Disclosure	ENVPEP2301018EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-07-31
Psr Version	PSR-0005-ed2-2016 03 29
