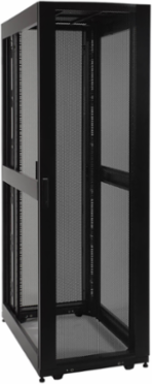

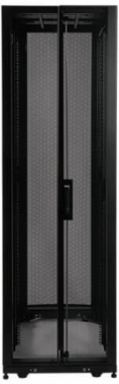

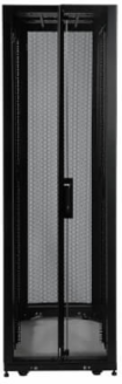

Tripp Lite SR42UBMDEXP 42U SmartRack Mid-Depth Expansion Rack - side panels not included
Tripp Lite SR42UBMDEXP 42U SmartRack Mid-Depth Expansion Rack - side panels not included
- MPN: SR42UBMDEXP
- UPC: 037332175663
- PPN: TRP-SR42UBMDEXP
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2875.66/ EA
Description
42U SmartRack Mid-Depth Expansion Rack - side panels not included
Features
- 42U SmartRack enclosure with doors and NO side panels. 'EXP' version is an expansion model for when several cabinets are bayed together
- 36" (927mm) depth (with mounting depth increments from 4 to 31") and standard 24" (600mm) width
- 4 interior vertical posts with unthreaded square hole openings
- Ships fully assembled
- Massive front to rear ventilation capacity
- 3000 lb stationary / 2250 lb rolling load capacity
- Locking, removable, reversible front and rear doors
- Rolls through standard 7 foot doorways
- 5-year limited warranty
Specifications
Certifications
- Certifications
- UL60950; RoHS; CE; IP20 Protection Rating
ApprovalsEIA/ECA-310-E
Physical
- Color
- Black
- Maximum Device Depth (in.)
- 31
- Rack Height
- 42U
- Shipping Weight (lbs.)
- 236.00
- Unit Weight (lbs.)
- 186
- Weight Capacity - Stationary (lbs.)
- 3000
Factory Preset Rack Depth (in.)22.75
Minimum Device Depth (in.)4
Shipping Dimensions (hwd / in.)78.00 x 36.50 x 24.00
Unit Dimensions (hwd / in.)78.5 x 23.63 x 36
Weight Capacity - Rolling (lbs.)2250
Rack DepthMid
Overview
- UPC Code
- 037332175663
Rack TypeEnclosure
Special Features
- Grounding Lug
- Front and Back door frames
Warranty
- Product Warranty Period (Worldwide)
- 5-year limited warranty
