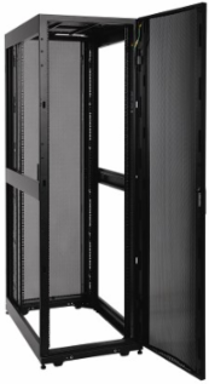

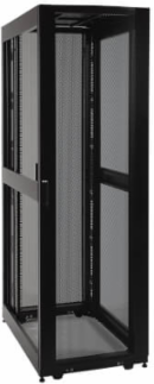

Tripp Lite SR42UB1032 42U SmartRack Standard-Depth Rack Enclosure Cabinet, Threaded 10-32 Mounting Holes with doors & side panels
Tripp Lite SR42UB1032 42U SmartRack Standard-Depth Rack Enclosure Cabinet, Threaded 10-32 Mounting Holes with doors & side panels
- MPN: SR42UB1032
- UPC: 037332175359
- PPN: TRP-SR42UB1032
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3364.59/ EA
Description
42U SmartRack Standard-Depth Rack Enclosure Cabinet, Threaded 10-32 Mounting Holes with doors & side panels
Features

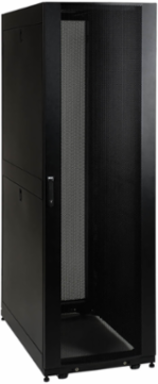

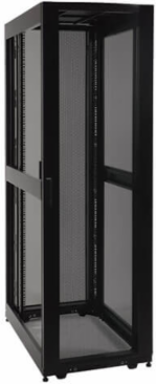

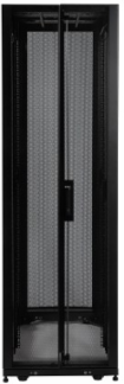

- 42U SmartRack enclosure with doors and side panels

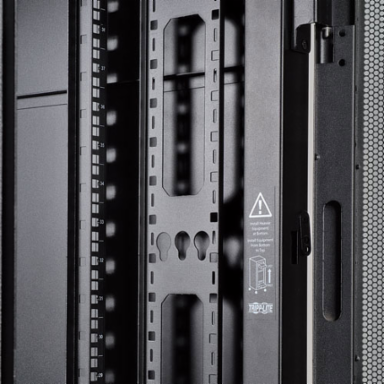

- 4 interior vertical posts with threaded 10-32 mounting holes
- Standard 24" (600mm) width and 42" (1050mm) depth for optimizing floor space
- Ships fully assembled

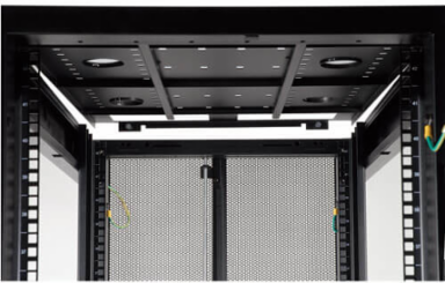

- Massive front to rear ventilation capacity
- 3000 lb stationary / 2250 lb rolling load capacity
- Locking, removable, reversible front and rear doors

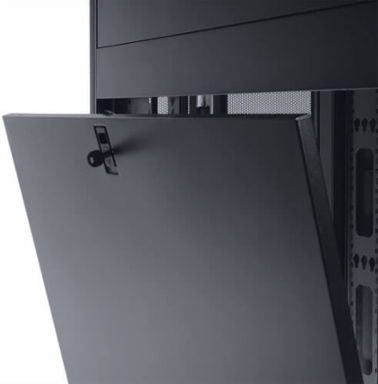

- Locking, removable side panels keyed alike with doors

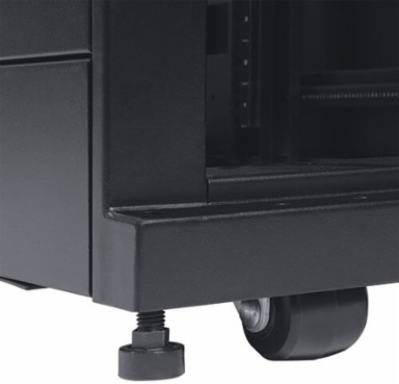

- Pre-installed casters and leveling feet
- Rolls through standard 7 foot doorway
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
- 5-year limited warranty
Specifications
Certifications
- Certifications
- UL60950; RoHS; CE; IP20 Protection Rating
ApprovalsEIA/ECA-310-E
Physical
- Color
- Black
- Maximum Device Depth (in.)
- 37
- Rack Height
- 42U
- Shipping Weight (lbs.)
- 336.00
- Unit Weight (lbs.)
- 286
- Weight Capacity - Stationary (lbs.)
- 3000
Factory Preset Rack Depth (in.)27.75
Minimum Device Depth (in.)4
Shipping Dimensions (hwd / in.)77.50 x 43.00 x 24.00
Unit Dimensions (hwd / in.)78.5 x 23.63 x 43
Weight Capacity - Rolling (lbs.)2250
Rack DepthStandard
Overview
- UPC Code
- 037332175359
Rack TypeEnclosure
Special Features

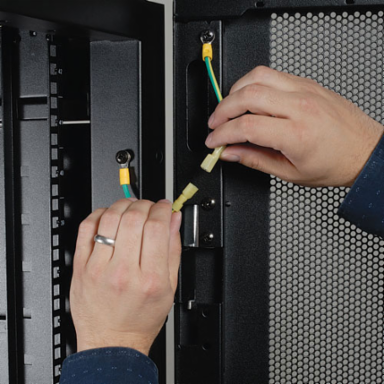

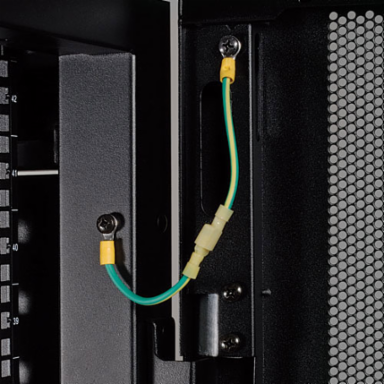

- Grounding Lug
- Front and back door frames

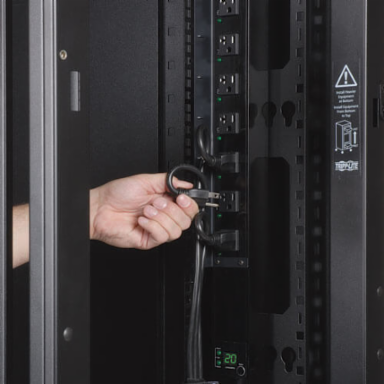

Built-in Cable ManagementYes
Warranty
- Product Warranty Period (Worldwide)
- 5-year limited warranty
