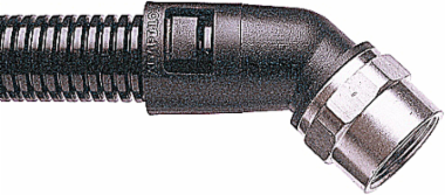

Adaptaflex AL42/M40/SF45/BL 45 Degree Conduit Fitting, 42mm Size, M40 Thread, Polyamide Material, IP66
- MPN: AL42/M40/SF45/BL
- UPC: 786210280905
- PPN: T-B-AL42/M40/SF45/BL
CAD
$64.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
45 Degree Conduit Fitting, Swivel Internal Female Thread, Nominal Conduit Size 42mm, M40 Thread, Polyamide (Nylon) 66, Nickel Plated Brass Thread, Black
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- 45 Degree
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
SizeNC 42mm
ColorBlack
Cable EntryM40 Thread
Packaging
- Outer Quantity
- 2
- Weight Uom
- 0.41 lbs. Each
Outer Dimensions (inches)1x1x1
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP66
- Revolving thread
- Y
- Type of connection
- Snap connection
- Thread connection size
- M40 x 1.5
- Material
- Polyamide
- Approved in combination with protective conduit UR
- Y
Nominal diameter42mm
Model45°-elbow
Construction typeInternal thread
Thread typeMetric
Thread length20.3mm
ColourBlack
Approved in combination with protective conduit DIN EN 61386-23Y
